Install rear wall - AR64.10-P-5746-03T

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1003-02A	Clamping pliers
WH58.30-Z-1038-02A	Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany
WH58.30-Z-1004-20A	Hot-air gun
WH58.30-Z-1003-29A	Hand riveter
WH58.30-Z-1001-35A	Aluminum workshop vehicle

WORKSHOP EQUIPMENT

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1092-02A	Adhesive	A 009 989 36 71
BR00.45-Z-1001-13A	Rivet	A 003 990 35 97

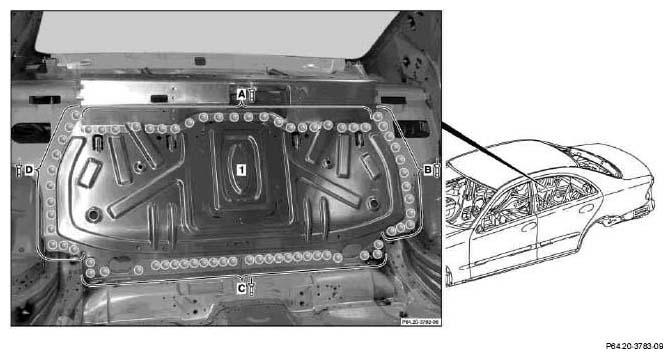

Fig 1: Identifying Gluing Residues

Remove gluing residues (area E).

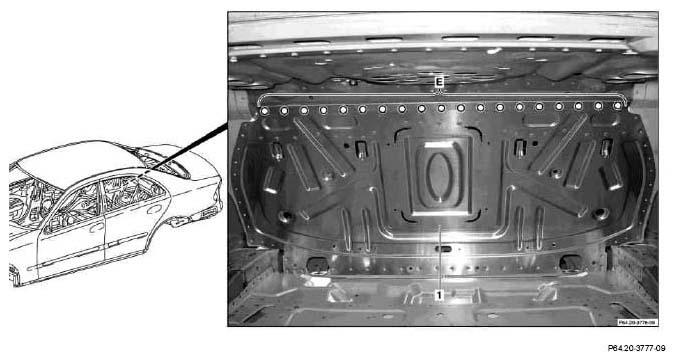

Fig 2: Identifying Drill Holes Area
Remove gluing residues (areas A, B, C and D).
Install rear wall (1) and fasten with clamping pliers .
Drill dia. 6.5 mm holes for manual temporary fasteners and fasten in rear wall (1) (areas A, B, C and D).
Fasten rear wall (1) with manual temporary fasteners .
Drill remaining holes with dia. 6.5 mm bit (areas A, B, C and D).

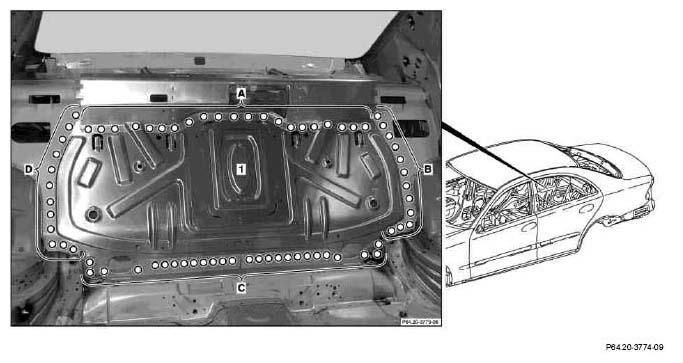

Fig 3: Identifying Rivet Holes On Rear Wall
Drill dia. 6.5 mm rivet holes (area E).
Remove rear wall (1) and deburr rivet holes on both sides (areas A, B, C, D and E).
Remove grinding and drilling chips using wet/dry vacuum cleaner.
Apply DP 490 2-component adhesive to rear wall (1).
Observe preliminary treatment of surfaces to be bonded.

Refer to the manufacturer's information for the curing and working times of the adhesive.
Install rear wall (1) and fasten with manual temporary fasteners .

Fig 4: Identifying Flat Head Rivet On Rear Wall
Rivet rear wall (1) with Polygrip aluminum/steel flat head rivet, dia. 6.4x14 (areas A, B, C and D).

Fig 5: Identifying Flat Head Rivet On Rear Wall
Rivet rear wall (1) with Polygrip aluminum/steel flat head rivet, dia. 6.4x14 (area E).
