Replace brake hoses - AR42.10-P-0013T

MODEL 211

Front axle brake hose, shown on model 211 without 4MATIC

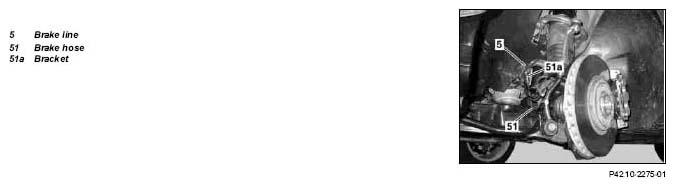

Fig 1: Identifying Brake Hoses Components - Shown On Model 211 Without 4Matic

Rear axle brake hose

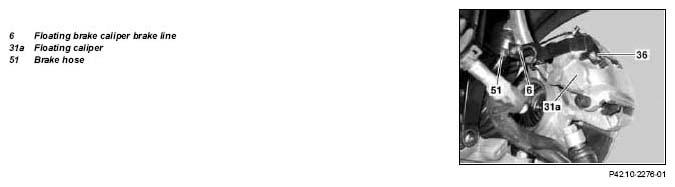

Fig 2: Identifying Rear Axle Brake Hose Components

Front axle brake hose, shown on model 211 with 4MATIC

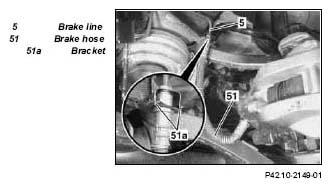

Fig 3: Identifying Front Axle Brake Hose Components - Shown On Model 211 With 4Matic

Front axle brake hose, shown on model 211 with 4MATIC

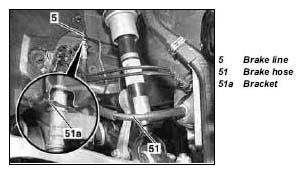

Fig 4: Identifying Front Axle Brake Hose Components - Shown On Model 211 With 4Matic

	Remove/install
	Risk of injury caused by body parts being jammed or crushed. Risk of injury to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system	Deactivate SBC brake system using STAR DIAGNOSIS.	AS42.46-Z-0001-01A
	Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes.	Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
1	Deactivate SBC brake system using STAR DIAGNOSIS.	Vehicles with Sensotronic Brake Control (SBC)
		The following steps should be run through in STAR DIAGNOSIS:
		Select menu item "SBC-Sensotronic Brake Control"/"Deactivate 'SBC' system".
		Then process all the individual steps from top to bottom.
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
2	Remove wheel.
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
3	Detach brake line (5) from brake hose (51)	Seal brake line (5) immediately using stop plug. The brake fluid expansion reservoir must not run empty otherwise air gets into the brake system.
	Notes on installing brake hoses		AH42.10-P-9406-01A
		When loosening or tightening the brake line (5) on the brake hose (51), take care not to twist the bracket (51a). Counterhold open wrench on two flats of brake hose (51) using an open-end wrench.
			*BA42.10-P-1001-04A
			Fig 5
			Fig 6
4.1	Detach brake (51) from floating brake caliper or fixed brake caliper	Except model 211.08/09/28/29
			*BA42.10-P-1002-04A
			Fig 7
4.2	Detach brake hose (51) from brake line (6) of floating brake caliper	Model 211.08/09/28/29
			*BA42.10-P-1002-04A
			Fig 7
5	Install in the reverse order
6.1	Bleed brake system with STAR DIAGNOSIS	Vehicles with Sensotronic Brake Control (SBC)	AR42.10-P-0012R
		When performing the bleeding operation, it is essential to observe the instructions in the document "Bleeding brake system using STAR DIAGNOSIS".
		The following steps should be run through in STAR DIAGNOSIS:
		Select menu item "Initial startup after repair"/"After opening or exchanging one or more brake hoses".
		Then process all the individual steps from top to bottom.
6.2	Bleed brake system	Vehicles with Adaptive Brake (ABR)	AR42.10-P-0010T

BRAKE LINES, BRAKE HOSES

Number	Designation		Model 211 with SBC	Model 211 with ABR
BA42.10-P-1001-04A	Brake pipe to brake hose	Nm	15	15
BA42.10-P-1002-04A	Brake hose to fixed or floating caliper	Nm	18	18

Fig 5: Identifying Set Of Stop Plugs (129 589 00 91 00)

Fig 6: Identifying Box Wrench Bit (000 589 75 03 00)

Fig 7: Identifying Ring Wrench (000 589 76 03 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
