Remove/install center paneling in trunk - AR68.30-P-4810TA

MODEL 211.0 with CODE (924) Bivalent natural gas drive

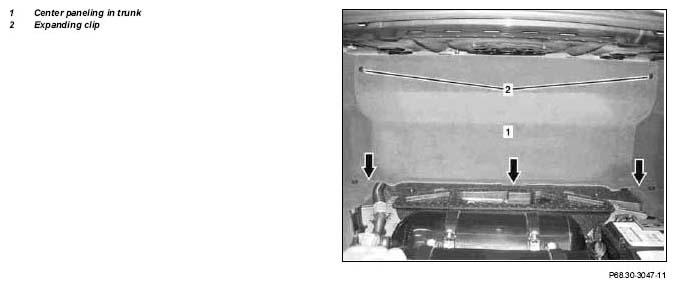

Fig 1: Identifying Center Paneling In Trunk
G04985516
REMOVINGINSTALLING Remove/Install
1 Remove trunk floor covering from trunk.
2 Remove expanding clips (2) and remove center paneling in trunk (1) IMPORTANTInstallation:  Ensure that retainer tabs lugs (arrows) are seated correctly.
3 Install in the reverse order
