Remove/install center paneling in trunk - AR68.30-P-4810T
MODEL 211.0 except CODE (287) Through-loading feature except CODE (924) Bivalent natural gas drive
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove trunk floor covering from trunk | ||
| 2 | Remove left or right paneling in trunk | AR68.30-P-4800T | |

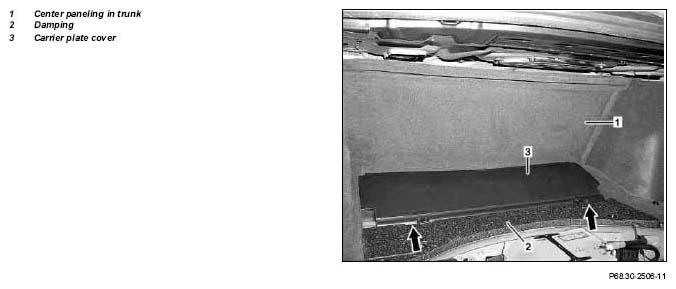

| 3 | Remove damping (2) | ||
| 4 | Unscrew screws (arrows) and remove carrier plate cover (3). | ||
| 5 | Loosen center paneling in trunk (1) and move out of left and right paneling in trunk | ||
| 6 | Remove center paneling in trunk (1) | ||
| 7 | Install in the reverse order |
