Remove/install ashtray housing in front center console - AR68.20-P-2400T
MODEL 211.0/ 2/ 6
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| 1.1 | Move gearshift lever to furthest position to the rear | On vehicles without code (423a) Automatic 5speed transmission (NAG) | |
| 1.2 | Move selector lever to position "D" | On vehicles with code (423a) Automatic 5speed transmission (NAG) | |

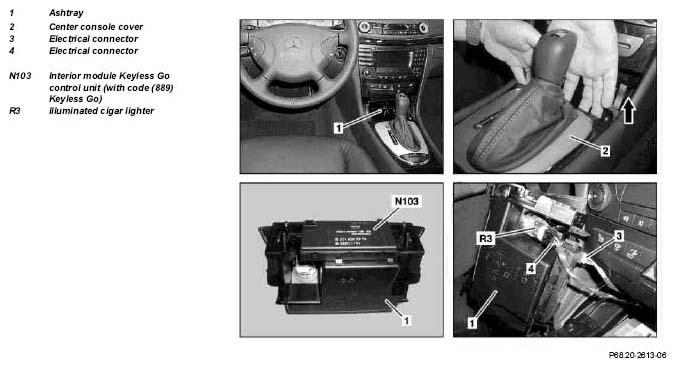

| 2 | Open ashtray (1) | ||
| 3 | Unclip center console cover (2) in the direction of the arrow out of center console | ||
| 4 | Pull ashtray (1) out of center console until electrical connectors (3, 4) are accessible. | ||
| 5.1 | Disconnect electrical connector (3) | On vehicles with code (889) Keyless go | |
| 6 | Disconnect electrical connector (4) at illuminated cigar lighter (R3) and remove ashtray (1) | ||
| 7.1 | Unclip interior compartment module Keyless go control unit (N103) from ashtray (1) | On vehicles with code (889) Keyless go | |
| 8 | Install in the reverse order |
