Remove/install wheelhousing liner in rear wheelhousing - AR88.10-P-1400T

MODEL 211.0/ 2/ 6

Shown on left rear fender

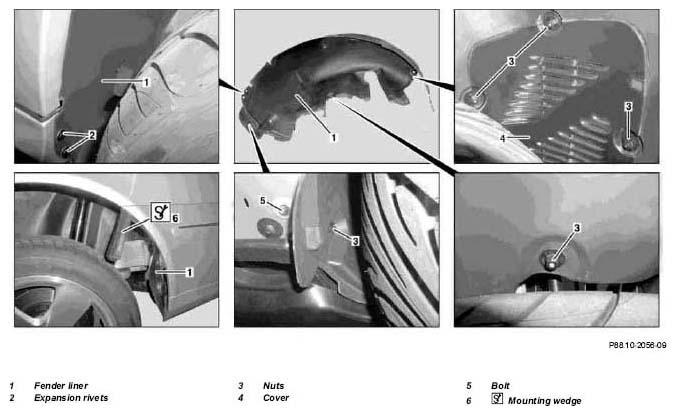

Fig 1: Identifying Wheelhousing Liner In Rear Wheelhousing Components

	Remove/Install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle.
2	Remove expansion rivets (2)
3	Unscrew nuts (3)
4	Take out cover (4)
5	Unscrew bolt (5).
6	Loosen fender liner (1) from rear fender with mounting wedge (6)	Installation:  Ensure that fender liner (1) is seated correctly.	Figure
7	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
