Left side rear damage - AR64.20-P-1200T: Notes
MODEL 211.0

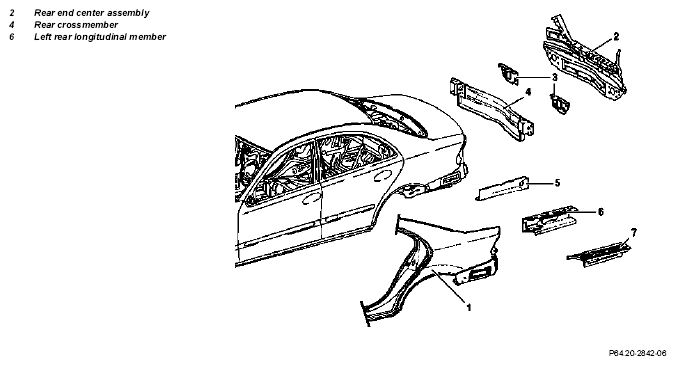

Fig 1: Identifying Rear Crossmember, Rear End Center Assembly And Left Rear Longitudinal Member - Model 211.0
| Remove | |||
|---|---|---|---|
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and undeburred vehicle parts. Deburr replacement panels. |
AS00.00-Z-0017-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the hydraulic lifting platform and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death
caused by high voltage used for arc welding. Risk of explosion
caused by welding in the area of highly inflammable materials. Risk of injury
caused by welding spatter and UV-light while welding. Risk of poisoning caused by inhaling welding vapors. |
Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor. | AS00.00-Z-0007-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| General information on body repair | AH60.00-N-0001-01A | ||
| Measures for preventing damage to vehicles or components during electro-welding | AH00.00-N-0005-01A | ||
| Notes on paintwork repairs | AH98.00-P-9408-02A | ||
| Guidelines for removing fuel tank when performing welding work on bodies | AH60.00-P-3000-01Z | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| 1 | Remove detachable parts in area to be repaired | ||
| 2.1 | Install fuel filler neck covering | When replacing right rear fender. | AR63.50-P-1400-01T |
| Figure | |||
| 3 | Cover detachable body components which remain in vehicle | Tarpaulin (fireproof) | *WH58.30-Z-1001-40A |
| 4 | Equip straightening bench with modular members, cross members and straightening bracket set. | ||
| Celette straightening bench M8S | *WE58.40-Z-1001-01E | ||
| Celette straightening bench Sevenne | *WE58.40-Z-1001-01E | ||
| Set of Celette modular members 955.940 | *WE58.40-Z-1007-01E | ||
| Celette additional member 955.908 | *WE58.40-Z-1008-01E | ||
| Car-Bench straightening bench BT 17 | *WE58.40-Z-1003-01E | ||
| Car-Bench straightening bench BT 43/1 | *WE58.40-Z-1003-01E | ||
| Car-Bench universal crossmember set A 296 | *WE58.40-Z-1010-01E | ||
| Multi-Z straightening set system MZ 450.000 | *WE58.40-Z-1006-01E | ||
| Celette straightening bench 7211.300 (for model 211) | *WE58.40-Z-1039-01A | ||
| Car Bench straightening bracket set 82441 (for model 211) | *WE58.40-Z-1054-01A | ||
| Celette 7211.308 supplementary straightening set for Celette straightening bracket set 7211.300 (for model 211 4MATIC) | *WE58.40-Z-1051-01A | ||
| Car-Bench 82451 supplementary straightening set for Car-Bench straightening bracket set 82441 (for model 211 4MATIC) | *WE58.40-Z-1055-01A | ||
| 5 | Place vehicle on straightening bench using two-column lift | Two-column lift | *WE58.40-Z-1001-05A |
| 6 | Attach vehicle to straightening bench | ||
| 7 | Remove spare wheel well | AR88.30-P-1000T | |
| 8 | Separate deformed rear area | AR64.20-P-1200-11T | |
| Figure | |||
| Figure | |||
| Figure | |||
| *WH58.30-Z-1002-01A | |||
| *WH58.30-Z-1006-01A | |||
| *WH58.30-Z-1001-03A | |||
| *WH58.30-Z-1024-04A | |||
| *WH58.30-Z-1004-20A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Angular grinder (electric/pneumatic) | *WE58.40-Z-1003-03A | ||
| Straight grinder (electric/pneumatic) | *WE58.40-Z-1002-03A | ||
| Body saw (electric/pneumatic) | *WE58.40-Z-1004-03A | ||
| Wet/dry vacuum cleaner | *WE58.40-Z-1005-03A | ||
| Two-column lift | *WE58.40-Z-1001-05A | ||
| Tarpaulin (fireproof) | *WH58.30-Z-1001-40A | ||
| Zinc dust paint which can be spot welded | *BR00.45-Z-1001-07A | ||
| 9 | Prepare left rear longitudinal member (6) for installation | AR64.20-P-1200-20T | |
| Figure | |||
| *WH58.30-Z-1002-01A | |||
| *WH58.30-Z-1001-03A | |||
| *WH58.30-Z-1006-01A | |||
| *WH58.30-Z-1002-02A | |||
| *WH58.30-Z-1024-04A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Straight grinder (electric/pneumatic) | *WE58.40-Z-1002-03A | ||
| Angular grinder (electric/pneumatic) | *WE58.40-Z-1003-03A | ||
| Zinc dust paint which can be spot welded | *BR00.45-Z-1001-07A | ||
| 10 | Prepare rear fender for installation | AR63.50-P-1400-03T | |
| *WH58.30-Z-1001-03A | |||
| *WH58.30-Z-1002-02A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Zinc dust paint which can be spot welded | *BR00.45-Z-1001-07A | ||
| 11 | Prepare bottom rear end center assembly (2) for installation | AR64.20-P-1000-07T | |
| *WH58.30-Z-1001-03A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Zinc dust paint which can be spot welded | *BR00.45-Z-1001-07A | ||
| Install | |||
| 12 | Install and weld in left rear longitudinal member (6) and rear cross member (4) | AR64.20-P-1200-03T | |
| General notes on riveting | AH60.00-P-0003-01N | ||
| *WH58.30-Z-1003-01A | |||
| *WH58.30-Z-1003-02A | |||
| *WE58.40-Z-1003-14A | |||
| *WH58.30-Z-1003-29A | |||
| *WH58.30-Z-1038-02A | |||
| Inert gas welder | *WE58.40-Z-1001-02A | ||
| Spot welder | *WE58.40-Z-1002-02A | ||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Angular grinder (electric/pneumatic) | *WE58.40-Z-1003-03A | ||
| Wet/dry vacuum cleaner | *WE58.40-Z-1005-03A | ||
| Polygrip flat/round head rivet, 6.4x14 | *BR00.45-Z-1001-13A | ||
| Zinc dust paint which can be spot welded | *BR00.45-Z-1001-07A | ||
| 13 | Install and weld in left rear longitudinal member (6) | AR64.20-P-1200-05T | |
| *WH58.30-Z-1003-01A | |||
| *WH58.30-Z-1002-02A | |||
| *WH58.30-Z-1003-02A | |||
| *WH58.30-Z-1003-29A | |||
| *WE58.40-Z-1003-14A | |||
| *WH58.30-Z-1038-02A | |||
| Inert gas welder | *WE58.40-Z-1001-02A | ||
| Spot welder | *WE58.40-Z-1002-02A | ||
| Sealant | *BR00.45-Z-1003-01A | ||
| Zinc dust paint which can be spot welded | *BR00.45-Z-1001-07A | ||
| Preservation agent | *BR00.45-Z-1003-05A | ||
| 14 | Install rear end center assembly (2) | AR64.20-P-1000T | |
| 15 | Installing rear fender | AR63.50-P-1400-04T | |
| *WH58.30-Z-1001-03A | |||
| *WH58.30-Z-1003-01A | |||
| *WE58.40-Z-1003-14A | |||
| *WH58.30-Z-1003-02A | |||
| *WH58.30-Z-1003-29A | |||
| *WH58.30-Z-1038-02A | |||
| *WH58.30-Z-1024-04A | |||
| Inert gas welder | *WE58.40-Z-1001-02A | ||
| Spot welder | *WE58.40-Z-1002-02A | ||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Angular grinder (electric/pneumatic) | *WE58.40-Z-1003-03A | ||
| Wet/dry vacuum cleaner | *WE58.40-Z-1005-03A | ||
| Sealant | *BR00.45-Z-1003-01A | ||
| Zinc dust paint which can be spot welded | *BR00.45-Z-1001-07A | ||
| Preservation agent | *BR00.45-Z-1003-05A | ||
| Polygrip flat/round head rivet, 6.4x14 | *BR00.45-Z-1001-13A | ||
| 16 | Unfasten vehicle from straightening bench | ||
| 17 | Lift vehicle with two-column lift | Two-column lift | *WE58.40-Z-1001-05A |
| 18 | Remove straightening bench. | ||
| 19 | Clean area to be repaired | ||
| 20 | Prime area to be repaired with primer/filler | ||
| 21 | Carry out seam sealing after repairs | AR97.10-P-4000T | |
| Sealant | *BR00.45-Z-1003-01A | ||
| Seam sealant, sprayable 310 ml | *BR00.45-Z-1041-01A | ||
| 22 | Paint repair areas and adjacent surfaces | ||
| 23 | Install spare wheel well | AR88.30-P-1000T | |
| 24 | Cavity preservation following repair work | AR97.20-P-1500T | |
| Notes on cavity preservation | AH97.20-P-0001-01B | ||
| Cavity preservation gun Sata HRS no. 11072 | *WE58.40-Z-1006-08A | ||
| Preservation agent | *BR00.45-Z-1003-05A | ||
| 25 | Remove tarpaulin from all covered parts that remained in the vehicle | Tarpaulin (fireproof) | *WH58.30-Z-1001-40A |
| 26 | Install detachable body components removed |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-01A | Ball cutter, dia. 12 mm |
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1006-01A | Vario Drill WS 91 spot weld removing tool |
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm) |
| WH58.30-Z-1004-20A | Hot-air gun |
| WH58.30-Z-1003-29A | Hand riveter |
| WH58.30-Z-1001-40A | Tarp (fire-resistant) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1039-01A | Celette straightening bracket set 7211.300 (model 211) |
| WE58.40-Z-1051-01A | Celette 7211.308 supplementary straightening set for Celette straightening bracket set 7211.300 (model 211 4Matic) |
| WE58.40-Z-1054-01A | Car bench straightening bracket set 82441, (model 211) |
| WE58.40-Z-1055-01A | Car-Bench 82451 supplementary straightening set for Car-Bench straightening bracket set 82441 (model 211 4Matic) |
| WE58.40-Z-1001-01E | Celette straightening bench |
| WE58.40-Z-1003-01E | Car-Bench straightening bench |
| WE58.40-Z-1006-01E | Celette Multi-Z straightening set system |
| WE58.40-Z-1007-01E | Celette module crossmember set 955.940 |
| WE58.40-Z-1008-01E | Celette additional member 955.908 |
| WE58.40-Z-1010-01E | Car-Bench universal cross member set A 296 |
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
| WE58.40-Z-1001-05A | Two-post lifting platform |
| WE58.40-Z-1006-08A | Cavity preservation gun |
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Preservation agent | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1001-13A | Rivet | A 003 990 35 97 |
