Navigation in the navigation system is inaccurate - AF82.85-P-6092A

MODEL 211.0 with CODE (527) COMAND APS (with navigation) with CODE (525) MB Audio 50 APS radio

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	024350	Check production date of antenna for GPS and telephone systems	005 WU	-	-
P	024351	Replace antenna for GPS and telephone systems (after testing)	013 WU	-	-

Damage code	Cause	Remedy
82 858 52	The GPS antenna can cause problems with the reception.	If this complaint only occurs occasionally, it can be reproduced in some cases by moving the antenna housing.
	Affected are those GPS antennas with production dates between CW 41/02 and CW 06/03 (the date can be found imprinted on the end of the plug for the telephone behind the right trunk lining, see figures).	Important in this case is that the GPS antenna is not covered with a hand when being tested. This could cause a failure of the GPS.
	Wrong directions are given in the navigation mode or the navigation is incorrect. Despite good reception outside in the open, there is still sometimes no satellite reception.	1 Check the production date of the GPS antenna.
	Affects vehicles with COMAND as of Navigation DVD 2.3 in navigation processor.	If the production date is between CW 41/02 and CW 06/03: ↓ 2 Remove/install/replace GPS antenna.

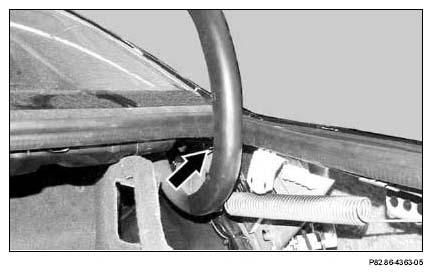

Figure 1: Position of the end of the GPS antenna line

Fig 1: Locating Position Of End Of GPS Antenna Line

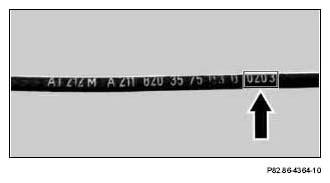

Figure 1: Production date imprint for GPS antenna

Fig 2: Locating Production Date Imprint For GPS Antenna

PARTS ORDERING NOTES

Part no.	Designation	Quantity
211 820 35 75	Antenna, GPS/telephone (ECE)	1
211 820 36 75	Antenna, GPS/telephone (USA)	1
