Front fog lamp beam screen cap is loose - AF82.10-P-2064A

MODEL 211.### 1A up to 348118, 211.### 1X up to 109178

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text
P	024207	Repair front fog lamp beam screen cap, location:...........
P	024208	Repair beam screen cap in both front fog lamps

Damage code	Cause	Remedy
82 B11 82 P11	Insufficient fixing of beam screen cap (3) (Fig 1).	Cost-optimized repair method to be considered in W&G cases.
	In exceptional cases, the cap may come loose due to tolerances being exceeded between the fixture, the beam screen and the cap.	1 Remove front fog lamp.	AR82.10-P-1835T
	The holding ability of the beam screen cap has been increased.	2 Remove three retaining clamps (1) Fig 2).
		3 Remove lens (2) (Fig 3).
		4 Bend the tabs for the beam screen cap slightly outward (Fig 4). Do not bend too far to avoid breaking the tabs!
		5 Insert beam screen cap (3) so that it clicks into place (Fig 5).
		6 If soiled, clean reflector with soft cloth.
		7 Secure lens with three retaining clamps (1) (Fig 6).
		8 Install front fog lamp.	AR82.10-P-1835T

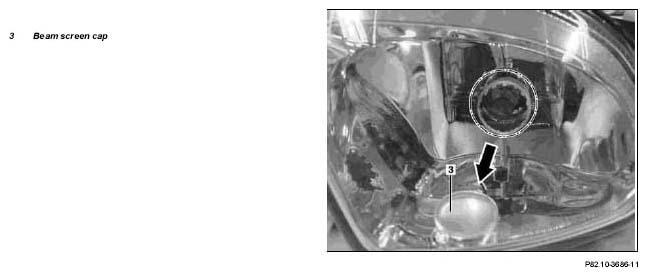

Fig 1: Identifying Beam Screen Cap

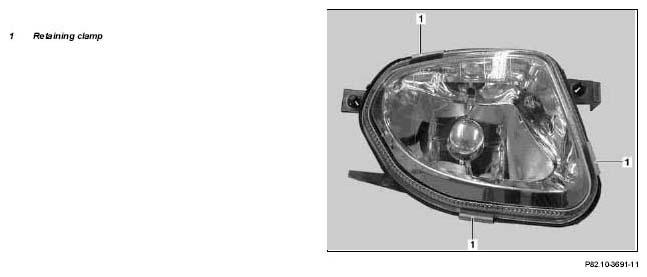

Fig 2: Identifying Retaining Clamp

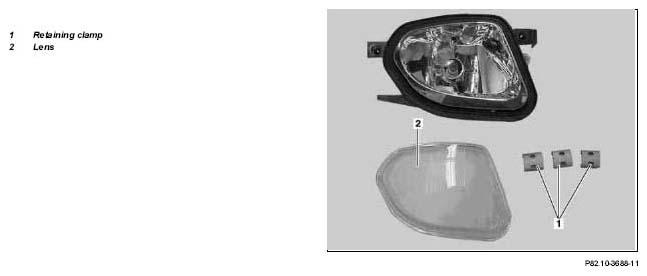

Fig 3: Identifying Retaining Clamp And Lens

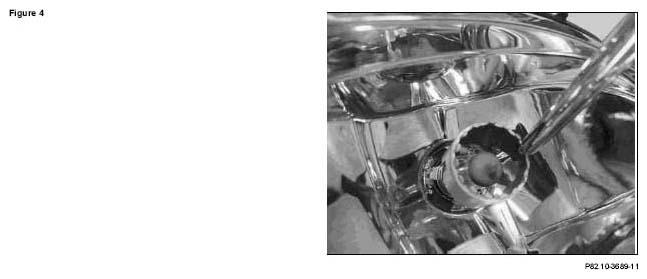

Fig 4: Identifying Beam Screen Cap

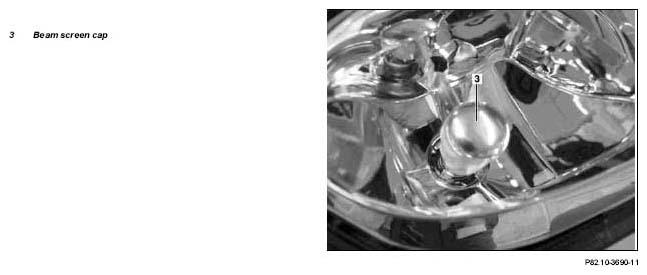

Fig 5: Identifying Beam Screen Cap

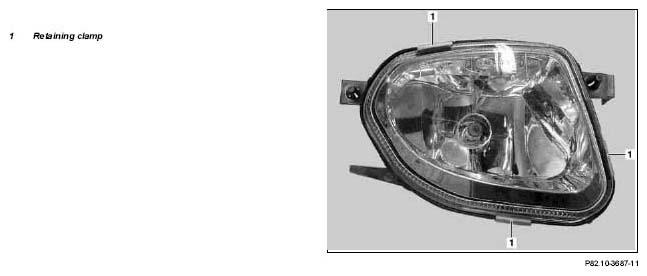

Fig 6: Identifying Retaining Clamp
