Removing and installing loudspeaker in instrument panel - AR82.62-P-7833T
MODEL 211.0/ 2/ 6
MODIFICATION NOTES
| 15.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove cover for loudspeaker | Vehicles up to 31.5.04 | AR68.10-P-1050T |
| Vehicles as of 1.6.04 | AR68.10-P-1050TA | ||

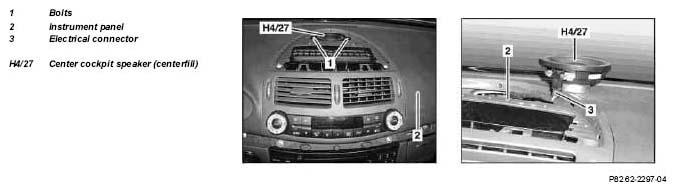

| 2 | Remove bolts (1) | ||
| 3 | Remove center cockpit speaker (centerfill) (H4/27) from instrument panel (2) until the electrical connector (3) is accessible | ||
| 4 | Unplug electrical connector (3) and remove center cockpit speaker (Centerfill) (H4/27) | ||
| 5 | Install in the reverse order |
