Remove/install bass module speaker - AR82.62-P-7839T
MODEL 211.2 with CODE (810) Sound system
MODIFICATION NOTES
| 15.1.04 | Disconnect ground cable on battery, connect |
| Remove/Install | |||
|---|---|---|---|

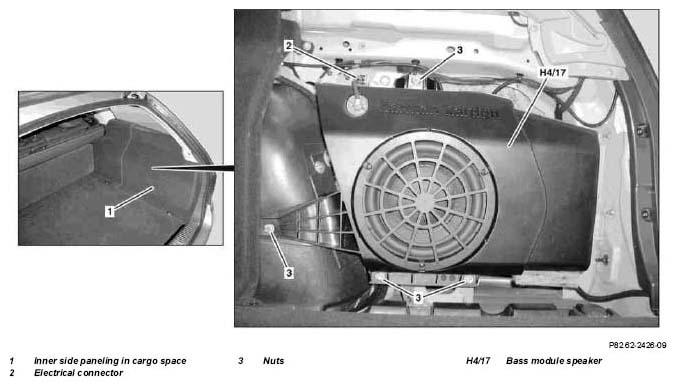

| 1 | Remove inner paneling of load compartment (1) on right side | AR68.30-P-1180T | |
| 2 | Disconnect electric connector (2) | ||
| 3 | Undo nuts (3) and remove bass module speaker (H4/17) | ||
| 4 | Install in the reverse order |
