Removing, installing rear prefuse box - AR54.15-P-1340TA

MODEL 211.0

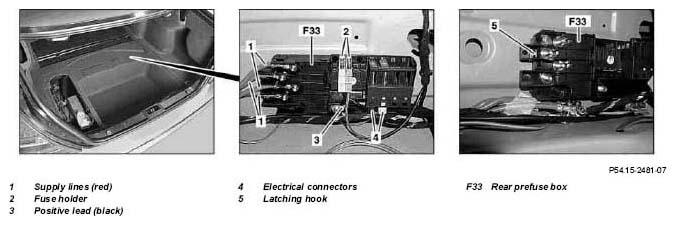

Fig 1: Identifying Rear Pre-Fuse Box Components - Model 211.0
G04984417
REMOVINGINSTALLING Remove/Install
1 Disconnect battery ground cable   AR54.10-P-0003T
2 Mark installation position of individual supply lines (red) (1) IMPORTANT Number of supply lines (red) (1) varies depending on equipment configuration.
3 Detach supply lines (red) (1) at the rear prefuse box (F33) and put the supply lines (red) (1) to one side IMPORTANT Nuts remain attached to supply lines (red) (1).
IMPORTANTInstallation:  Observe installation markings.
    TORQUE SPECIFICATION *BA54.10-P-1008-01C
4 Unclip fuse holder (2) at the rear prefuse box (F33) IMPORTANT Number of fuse holders (2) varies depending on equipment configuration.
IMPORTANTInstallation:  Pay attention to color coding of fuse holder (2).
5 Detach positive lead (black) (3) and put to one side TORQUE SPECIFICATION *BA54.10-P-1008-01C
6 Disconnect electrical connector (4) at the rear prefuse box (F33) IMPORTANT Number of electrical connectors (4) according to equipment.
IMPORTANTInstallation:  Pay attention to color coding of electrical connectors (4).
7 Unclip rear prefuse box (F33) from latching hook (5) and remove IMPORTANT Push latching hook (5) to side.
8 Install in the reverse order
TORQUE SPECIFICATION BATTERY

Number Designation Model 211
BA54.10-P-1008-01C Nut, line connection to rear prefuse box M6 Nm 7
M8 Nm 21
