Removing and installing Parktronic system (PTS) warning indicator in instrument panel - AR54.65-P-0003T
MODEL 211.0 /2 /6 with CODE (220a) Parktronic System (PTS)
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove instrument panel top section (1) | AR68.10-P-1020T | |

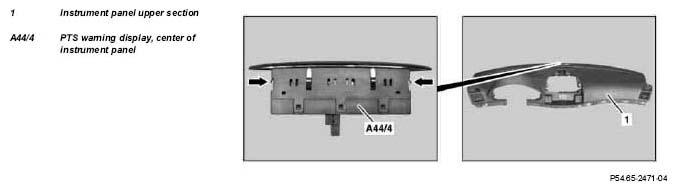

| 2 | Push back the retaining clamps with a screwdriver (arrows) and unclip center instrument panel PTS warning indicator (A44/4) from instrument panel upper section (1) | ||
| 3 | Install in the reverse order |
