Remove/install vehicle power supply control unit - AR54.21-P-0100TA
MODEL 211.2 up to 31.5.06
MODIFICATION NOTES
| 10.8.05 | The operation step "Disconnect ground line of additional battery" is deleted Attach a cable bridge for bridging negative terminal of battery to vehicle ground has been added |
Step 8 |
| Remove | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove trim from rear end center assembly | AR68.30-P-4785TA | |

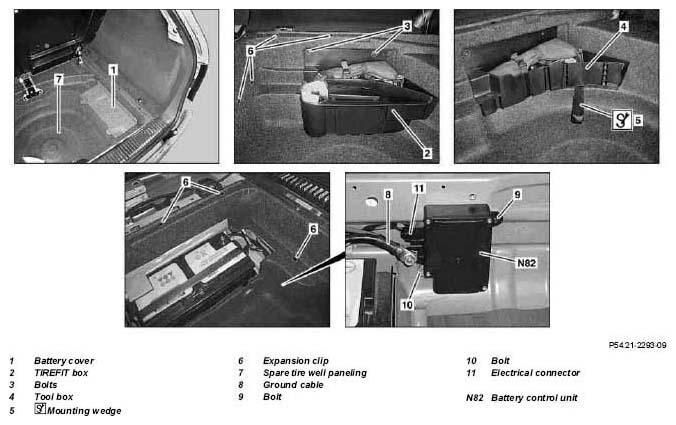

| 2 | Remove battery cover (1) | ||
| 3 | Remove TIREFIT box (2) or spare wheel from spare tire well | ||
| 4 | Unscrew bolts (3) from tool box (4) | ||
| 5 | Unclip tool box (4) using assembly wedge (5) and lift out of spare tire well | Figure | |
| 6 | Remove expansion clips (6) | *WH58.30-Z-1004-19A | |
| 7 | Fold up trim for spare tire well (7) until the battery control unit (N82) is accessible | ||

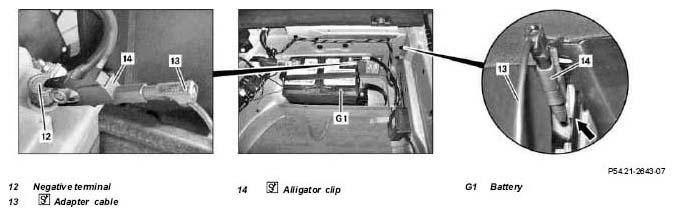

| 8 | Connect negative terminal (12) of battery (G1) to ground (circuit 31) using adapter line (13) (arrow) | ||
| Figure | |||
| 9 | Disconnect ground cable (8) from battery control unit (N82) | ||
| 10 | Unscrew bolt (9) | ||
| 11 | Unscrew bolt (10) | ||
| 12 | Separate electrical connector (11) and remove battery control unit (N82) | ||
| Install | |||
| 13 | Position battery control unit (N82) at installation location and secure with bolt (9) | ||
| 14 | Tighten bolt (10) | *BA54.10-P-1005-01C | |
| 15 | Fit ground line (8) to battery control unit (N82) | *BA54.10-P-1004-01C | |
| 16 | Remove adapter line (13) with alligator clips (14) | Figure | |
| 17 | Connect electrical connector (11) to battery control unit (N82) | ||
| 18 | Remove support from spare tire well and fold down spare tire well trim (7) | ||
| 19 | Install expansion clips (6) | ||
| 20 | Install tool box (4) and secure with bolts (3) | ||
| 21 | Install TIREFIT box (2) or spare wheel | ||
| 22 | Install battery cover (1) | ||
| 23 | Install rear center section paneling | AR68.30-P-4785TA |
| Number | Designation | Model 211 | ||
|---|---|---|---|---|
| BA54.10-P-1004-01C | Nut, ground lead to battery control unit | M8 | Nm | 12 |
| BA54.10-P-1005-01C | Bolt, battery control unit to body | M8 | Nm | 20 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1004-19A | Door panel release lever |
