Remove/install rotary light switch - AR54.25-P-3250T
MODEL 211.0/ 2/ 6
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove left trim strip from the instrument panel | AR68.10-P-1180T | |

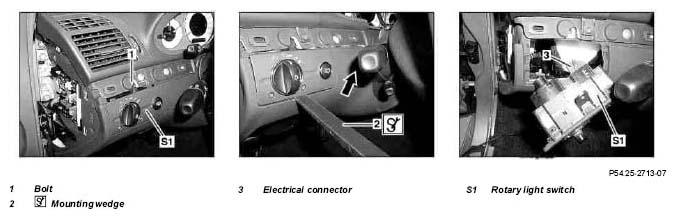

| 2 | Unscrew bolt (1). | ||
| 3 | Using assembly wedge (2) rotary light switch (S1) from the instrument panel in the direction of the arrow and pull out of the instrument panel until the electrical connector (3) is accessible | Figure | |
| 4 | Unplug electrical connector (3) and remove rotary light switch (S1) | ||
| 5 | Install in the reverse order | ||
| 6 | Carry out function check of rotary light switch (S1) |
