Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006TA
MODEL 211.2 with CODE (220) Parktronic system (PTS)
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Transfer basic data from the PTS control unit (N62) into STAR DIAGNOSIS | Only when replacing the PTS control unit (N62). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04TX | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove inner paneling on right side of load compartment | AR68.30-P-1180T | |

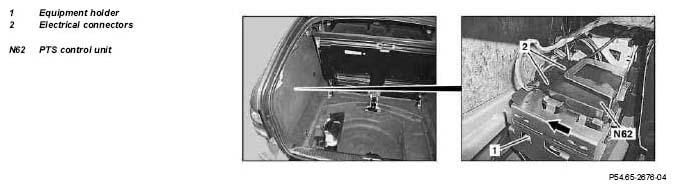

| 3 | Unclip PTS control unit (N62) from the device holder (1) in the direction of the arrow and remove until the electrical connectors (2) are accessible | ||
| 4 | Disconnect electrical connectors (2) and remove the PTS control unit (N62) | ||
| 5 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
