Remove/install mechanical stop lamp switch - AR42.10-P-0040TX

MODEL 219

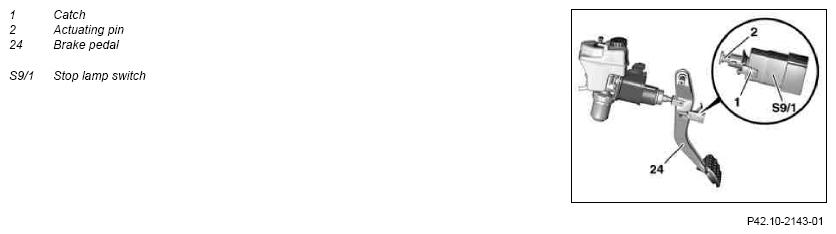

Fig 1: Identifying Mechanical Stop Lamp Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left cover below instrument panel		AR68.10-P-1500TX
2	Unplug electric connector at stop lamp switch (S9/1)
3	Press catch (1)
4	Turn and withdraw stop lamp switch (S9/1).	Pull out actuating pin (2) completely. Depress the brake pedal (24), insert stop lamp switch (S9/1) and turn until catch (1) engages. The actuating path is adjusted automatically.
5	Install in the reverse order
