Check hydraulic unit - AP42.50-P-4259TX
MODEL 219.3 with Sensotronic Brake Control (SBC)
| Checking | |||
| 1 | Connect STAR DIAGNOSIS | STAR DIAGNOSIS, diagnosis system | *WH58.30-Z-1048-13A |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||

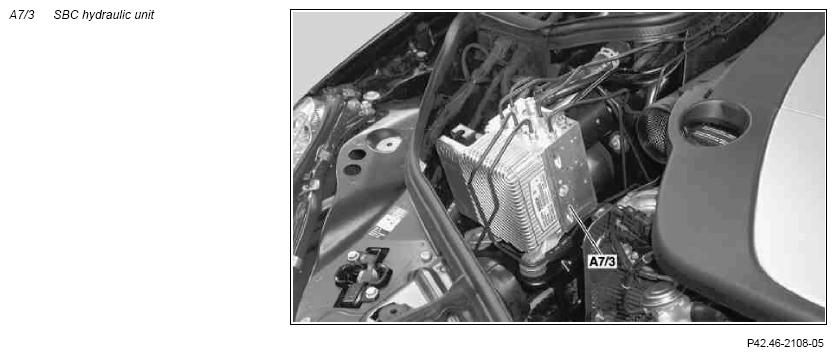

| 2 | Check operating period of SBC hydraulic unit (A7/3) by means of STAR DIAGNOSIS | If the test result of the SBC hydraulic unit (A7/3) not OK, the SBC hydraulic unit (A7/3) must be replaced: ↓ |
|
| Remove/install Sensotronic Brake Control (SBC) hydraulic unit | AR42.46-P-0010TX |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS, diagnosis system; Compact Passenger Car | 6511 1801 00 |
