Remove/install center stowage compartment - AR68.10-P-1620TX

MODEL 219.3 up to 2.3.08 except CODE (809) Model year 2009

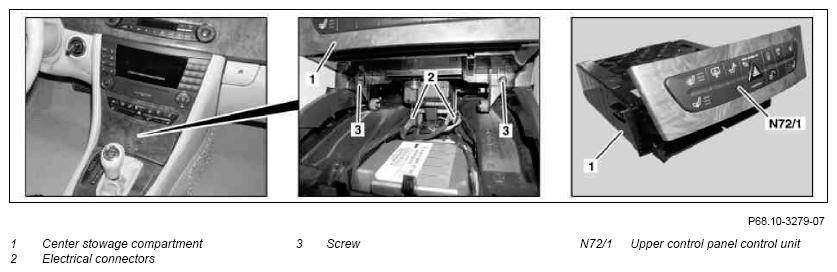

Fig 1: Identifying Center Stowage Compartment Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

5.7.06

"Disconnect/connect battery ground line" removed

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove ashtray from front center console		AR68.20-P-2400TX
2	Separate electrical connectors (2)
3	Remove bolts (3)
4	Pull center stowage compartment (1) out of center console	When replacing center stowage compartment (1), transfer detachable parts. See: ↓
		Remove/install upper control panel control unit	AR54.21-P-1262TX
5	Install in the reverse order
