Remove/install outside temperature indicator sensor - AR54.30-P-6341TX

MODEL 219.3

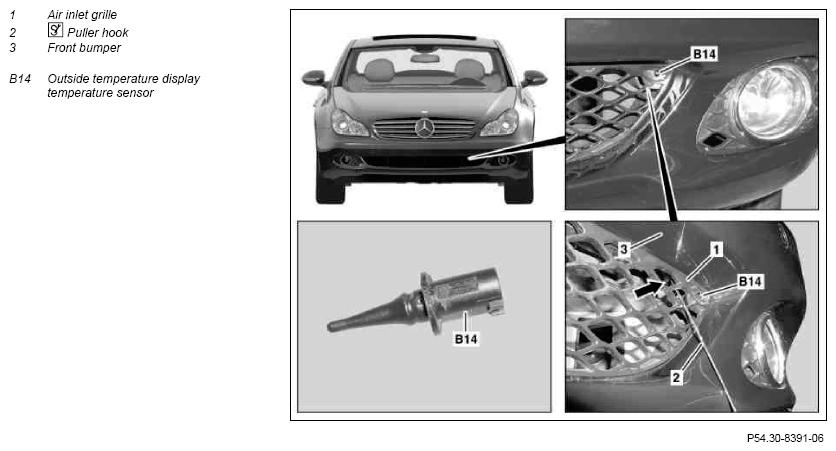

Fig 1: Identifying Outside Temperature Indicator Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bottom engine compartment paneling at front		AR61.20-P-1105TX
2	Unlock latching hook (arrow) at top left of air intake grill (1) with pulling hook (2)
		Observe correct seat of air inlet grill (1) in front bumper (3).	Fig 2
3	Separate electrical connector on outside temperature display temperature sensor (B14)
4	Unclip outside temperature display temperature sensor (B14) from the front bumper (3) and remove	Observe correct seat of the outside temperature display temperature sensor (B14) in the front bumper (3)
5	Install in the reverse order

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
