Remove/install housing for instrument cluster - AR54.30-P-6032TX

MODEL 219.3

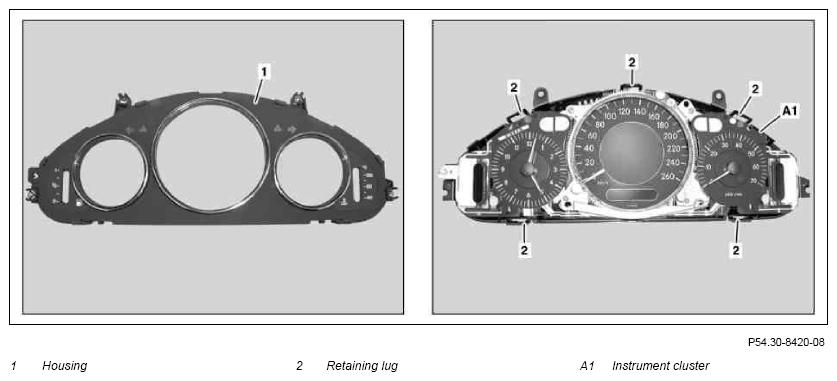

Fig 1: Identifying Instrument Cluster Housing Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove instrument cluster (A1)		AR54.30-P-6015TX
2	Unclip housing (1) from the instrument cluster (A1) at the retainer tabs	Unclip carefully. Risk of cracks and fracture of the retainer tabs (2).
3	Install in the reverse order
