Check lamps in instrument cluster and interior illumination - AP54.30-P-5453T
MODEL 211, 219
| Check | |||

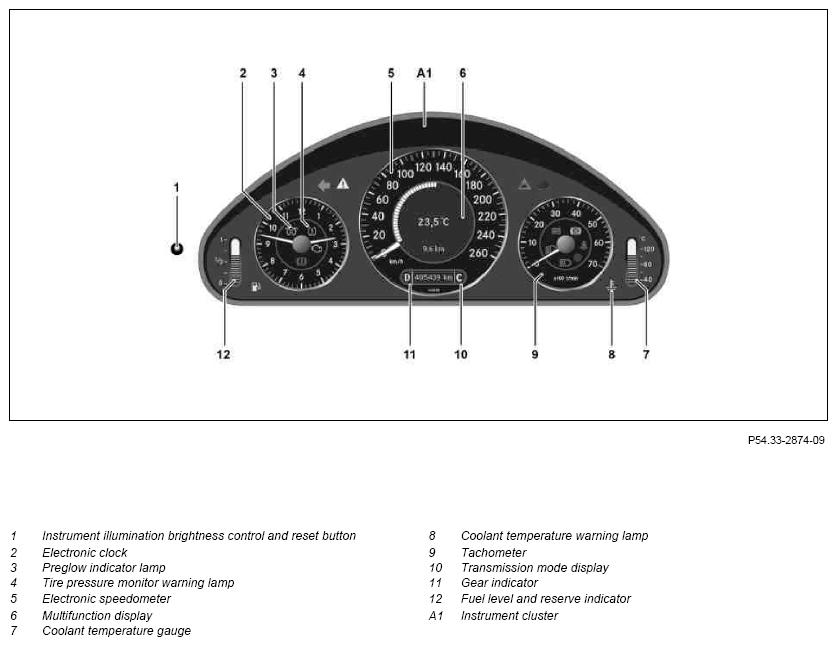

| 1 | Switch on ignition and check preglow indicator lamp (3) | If installed. If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 2 | Check coolant temperature display (7) and coolant temperature warning lamp (8) | If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 3 | Check tire pressure monitor warning lamp (4) | If installed. If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 4 | Check fuel level and reserve indicator (12) | If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 5 | Manually switch on the exterior lights | ||
| 6 | Check instrument illumination | If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 7 | Turn brightness control for instrument illumination and reset button (1) | If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 8 | Check displays (6, 7, 10, 11, 12) for visible pixel errors | If displays are fitted (6, 7, 10, 11, 12) check to see if they exhibit true vertical strips, missing segments or black dots: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 9 | Manually switch off exterior lights | ||
| 10 | Switch on lamps in passenger compartment and check for proper operation | If there are problems: ↓ Determine and rectify cause, subject to separate repair order. |
|
| 11 | Switch off lamps in passenger compartment and ignition |
