Remove/install water collector - AR83.25-P-1402TX
MODEL 219.3
| Remove/Install | |||
| 1 | Remove wiper arms | AR82.30-P-6100TX | |
| 2.1 | Unclip the multifunction sensor and, leaving the line connected, place it to the side | On vehicles with code (581) Comfort automatic air conditioning | AR83.40-P-6730TX |

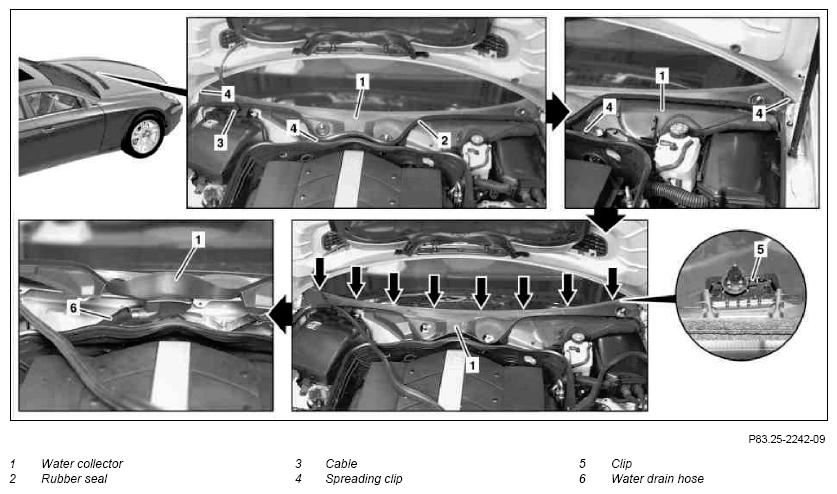

| 3 | Remove the rubber seal (2) in the area of the water collector (1) | ||
| 4 | Unclip the line (3) for the windshield washer nozzles | ||
| 5 | Remove the expansion clips (4) from the water collector (1) | ||
| 6 | Unclip water collector (1) in the area of the windshield (arrows) | ||
| 7 | Remove water drain hose (6) from the water collector (1) | ||
| 8 | Remove water collector (1) | ||
| 9 | Install in the reverse order |
