Remove/install rear dome lamp - AR82.20-P-0113TX

MODEL 219.3

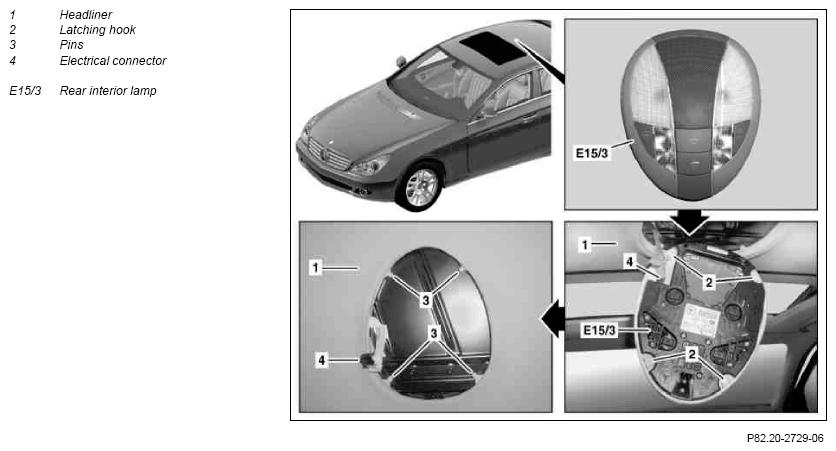

Fig 1: Identifying Rear Dome Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove rear interior lamp (E15/3) using mounting wedge from headliner (1)	Remove rear interior lamp (E15/3) carefully, as flat cable may be damaged.
		make sure that the catch hook (2) latches into the notch (3).	Figure
2	Unplug electrical connector (4) and remove rear interior lamp (E15/3)	Carefully disconnect electrical connector (4) as flat cable could be damaged.
3	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
