Remove/install tilting/sliding roof motor - AR77.20-P-3010TX
MODEL 219.3 with CODE (414) Glass electric tilting/sliding roof
| Remove/Install | |||
| 1 | Open tilting/sliding roof approx. 20 cm | ||
| 2 | Remove overhead control panel control unit | AR82.20-P-1000TX | |
| 3 | Remove left and right sun visor | AR68.60-P-5480TX | |
| 4 | Remove both front grab handles from roof | AR68.30-P-4330TX | |
| 5 | Unclip apex seal (1) upward and remove | ||
| 6 | Unscrew bolts (2) and remove mirror support (3) | ||

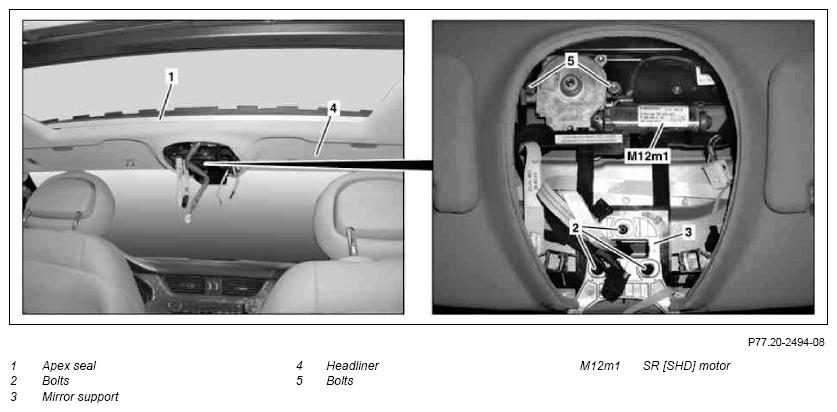

| 7 | Pull headliner (2) down in front area until SR motor (M12m1) is accessible | ||
| 8 | Unscrew bolts (5) and remove SR motor (M12m1) | *BA77.20-P-1002-01F | |
| 9 | Install in the reverse order |
SLIDING ROOF - ELECTRICS
| Number | Designation | Model 219 | ||
|---|---|---|---|---|
| BA77.20-P-1002-01F | Screw to sliding roof drive | Torx | Nm | 4 |
| Hexagon socket | Nm | - | ||
