Adjust tilting/sliding roof panel - AR77.20-P-1100TX
MODEL 219.3 with CODE (414) Power glass tilting/sliding roof
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

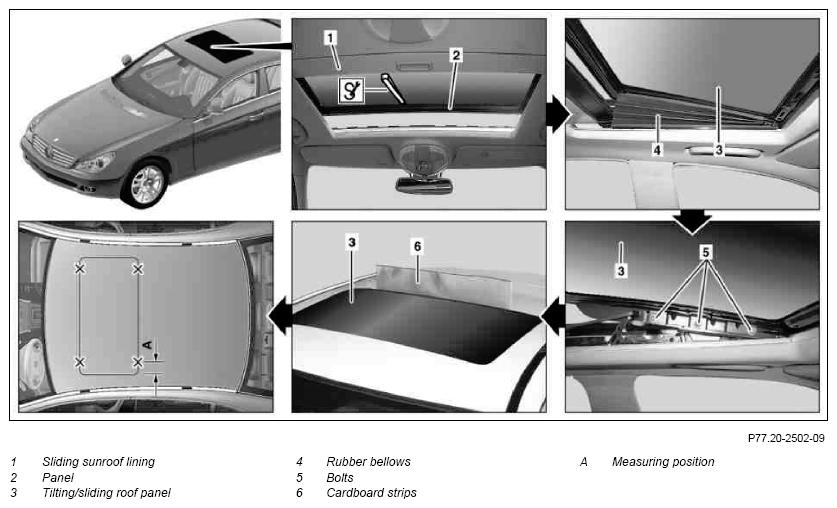

| 1 | Completely open sliding roof lining (1) | ||
| 2 | Open titling/sliding roof cover (3) approx. 20 cm. | ||
| 3 | Unclip covering (2) in center and side with assembly wedge, guide cover (2) out of rubber bellows (4) and remove | Figure | |
| 4 | Completely close titling/sliding roof cover (3) and then move to tilt position | ||
| 5 | Remove rubber bellows (4) on left and right from tilting/sliding roof panel (3) | ||
| 6 | Close tilting/sliding roof panel (3) | ||
| Adjust | |||
| 7 | Loosen bolts (5) on left and right on tilting/sliding roof panel (3) | ||
| 8 | Insert cardboard strips (6) at rear into expansion joint for tilting/sliding roof panel (3) | 1 to 2 mm thick. |
|
| 9 | Adjust tilting/sliding roof panel (3) in relation to exterior roof surface | ||
| *BE77.20-P-1001-01D *BE77.20-P-1002-01D |
|||
| 10 | Tighten left and right bolts (5) on tilting/sliding roof panel (3) | ||
| *BA77.20-P-1004-01F | |||
| 11 | Check tilting/sliding roof for proper function and correct tilting/sliding roof panel (3) match. | ||
| Install | |||
| 12 | Move tilting/sliding roof cover (3) into tilt position | ||
| 13 | Install rubber bellows (4) on left and right on tilting/sliding roof panel (3) | ||
| 14 | Close tilting/sliding roof panel (3) | ||
| 15 | Open titling/sliding roof cover (3) approx. 20 cm. | ||
| 16 | Position cover (2) in center and clip in | ||
| 17 | Close tilting/sliding roof panel (3) | ||
| 18 | Close sliding roof lining (1). | ||
| 19 | Perform learn-in procedure for tilting/sliding roof pinch protection | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS, diagnosis system |
TEST AND ADJUSTMENT VALUES FOR TILTING/SLIDING ROOF
| Number | Designation | Model 219 | ||
|---|---|---|---|---|
| BE77.20-P-1001-01D | Gap dimensions | Tilting/sliding roof cover, front | mm | 0.15 |
| Tilting/sliding roof cover, on side and rear | mm | 0.3 | ||
| BE77.20-P-1002-01D | Height setting | Measurement position "A" (x) | mm | 140 |
| Front: deeper than outer skin of roof | mm | 0 to 1 | ||
| Rear: higher than outer skin of roof | mm | 0 to 1 | ||
ELECTRIC SLIDING ROOF
| Number | Designation | Model 219 | |
|---|---|---|---|
| BA77.20-P-1004-01F | Bolt, tilting/sliding roof cover to tilt angle bracket | Nm | 4 |
