Remove/install door sill molding - AR68.30-P-4100TX

MODEL 219.3

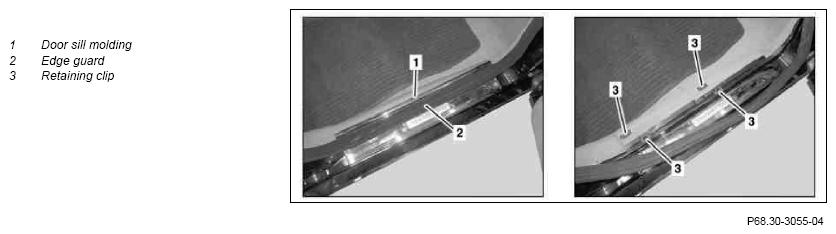

Shown on right front door sill molding

Fig 1: Identifying Door Sill Molding Remove/Install Components - Shown On Right Front Door Sill Molding

Courtesy of MERCEDES-BENZ USA

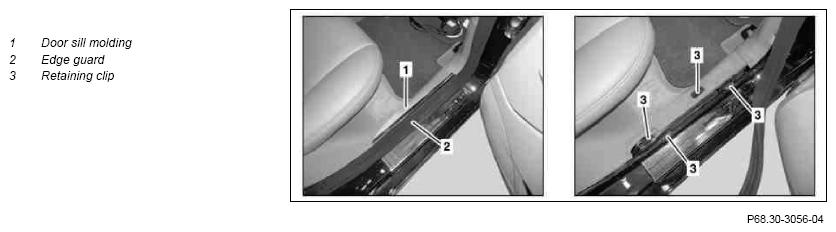

Shown on left front door sill molding

Fig 2: Identifying Door Sill Molding Remove/Install Components - Shown On Left Front Door Sill Molding

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1	Remove edge guard (2) in area of door sill molding (1)
2	Unclip door sill molding (1) with mounting wedge	Handle door sill molding (1) carefully to prevent scratching and breakage.
			Figure
3	Check retaining clips (2), if necessary position or replace
4	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
