TIREFIT puncture sealing compound - check expiration date - AP40.10-P-4054R

MODEL 163, 168, 170

MODEL 164, 171, 209, 230, 240, 414 except CODE (669) Spare wheel on steel rim

MODEL 209, 211.0/2/6 except CODE (679) Spare wheel in structural wheel design except CODE (690) Compact spare wheel as emergency wheel

MODEL 203

Model 170, 171, 203, 209, 230

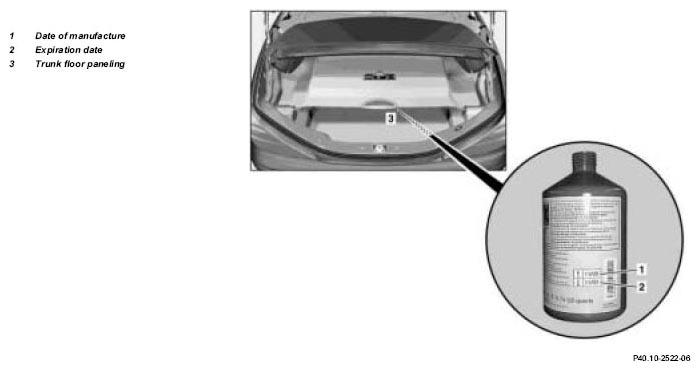

Illustrated on model 230

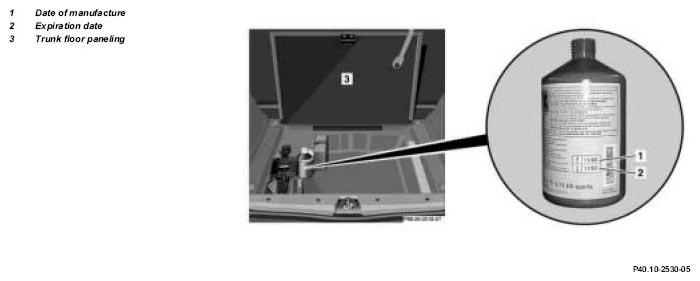

Type 168

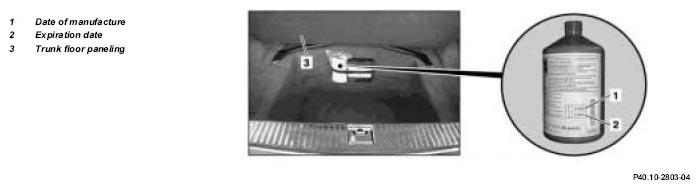

Model 211.0

Models 164, 211.2

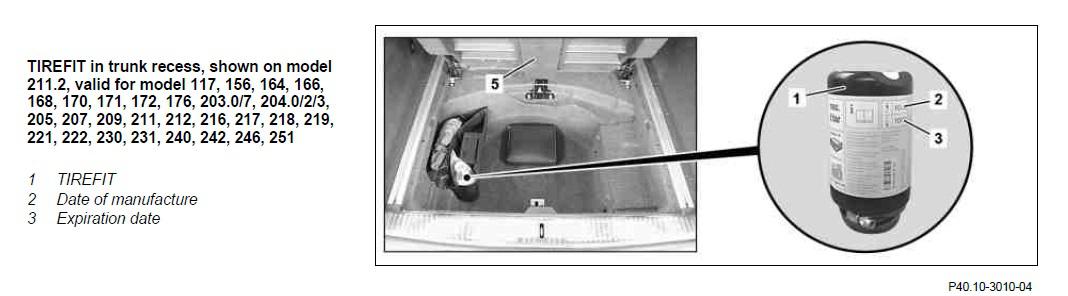

Shown on model 211.2

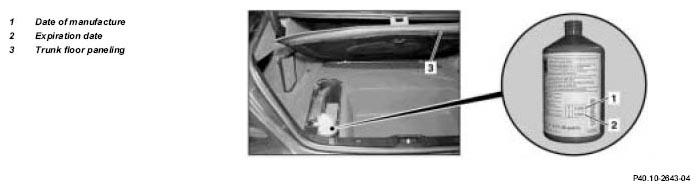

Model 240

Models 163, 414

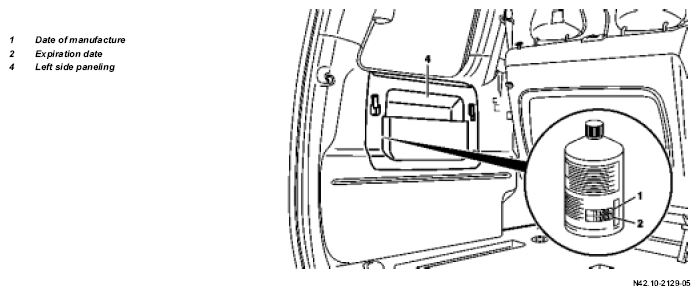

Illustrated on model 414

	Remove/install
	Risk of poisoning  caused by swallowing the TIREFIT emulsion. Risk of injury  caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire  caused by ignition of the TIREFIT emulsion	Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open fire or open light sources.	AS40.10-Z-0001-01A
1	Open luggage compartment lid	For model 211.6 the place where the TIREFIT tire repair kit is kept can vary depending on the vehicle body, see body manufacturer's operating manual.
2.1	Lift trunk floor paneling (3) or remove if necessary	Model 168, 170, 171, 203, 209, 211.0, 230, 240
2.2	Lift load compartment floor (5)	Model 164, 211.2/6 For model 211.6 the place where the TIREFIT tire repair kit is kept can vary depending on the vehicle body, see body manufacturer's operating manual.
2.3	Open left side paneling (4) in luggage compartment	Model 163, 414
	Checking
3	Check expiration date (2) on the bottle.	The TIREFIT tire repair kit should be replaced when its service life (2) expires.
	TIREFIT tire sealant		AH40.10-P-0001-01A
		Dispose of used or out-of-date TIREFIT in a container designed for paintshop waste (see Workshop Equipment Manual Volume 2, Chapter U, Group 00 (22), Subject 2.3).
4	Install in the reverse order
