Remove/install retractable trunk partition - AR68.50-P-3000QA

MODEL 209.4

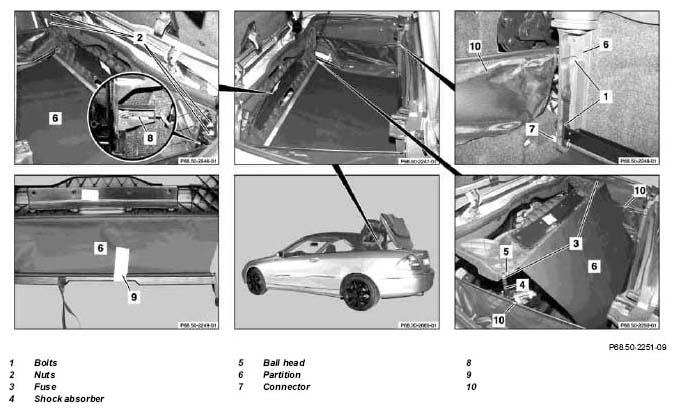

Fig 1: Identifying Retractable Trunk Partition Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
	Injury hazard from roll bar extending	Before working in the area of the roll bar pull rear head restraints out by hand.	AS91.00-Z-0003-01QA
1	Set up soft top bow and open soft top compartment cover
2	Cover vehicle in rear area	To prevent scratching the paint during assembly work.
3	Fasten partition (6) with adhesive tape (9).	Secure partition against rolling up completely with adhesive tape, because otherwise wrinkles would form at the wider end of the partition.
4	Lift fuse (3) from shock absorber (4).
5	Remove shock absorber (4) from ball head (5).
6	Unhook partition (10)
7	Unscrew bolts (1) from partition (6).
8.1	Disconnect connector (7)	Only in combination with code 282 a ski bag (through-loading feature)
9	Unscrew nuts (2) from partition (6).		*BA68.50-P-1001-01A
10	Detach connector (8)
11	Remove partition (6).
12	Install in reverse order

CURTAINS/SUN SHADES

Number	Designation		Model 209.4
BA68.50-P-1001-01A	Nut for sun shade mount	NM	8 (± 0.8)
