Remove/install loudspeaker amplifier control unit - AR82.62-P-7720P

MODEL 203.0, 209.3 with CODE (810) Sound system

Illustrated on model 203.0

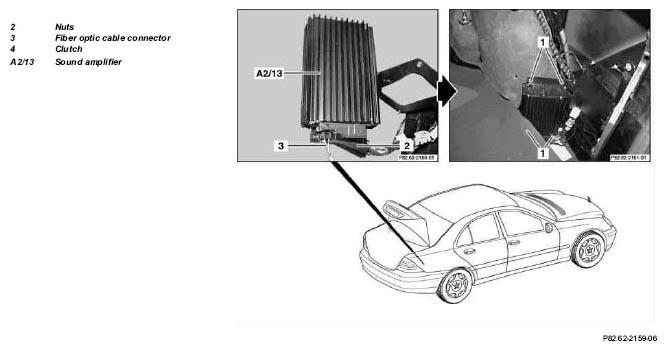

Fig 1: Identifying Loudspeaker Amplifier Control Unit Components - Illustrated On Model 203.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1	Remove right side paneling in trunk	Refer to: ↓
		Model 203.0	AR68.30-P-4600P
		Model 209.3	AR68.30-P-4600PB
2	Unscrew nuts (2)
3	Detach sound amplifier (A2/13) from mounting frame
4	Disconnect fiber optic cable connector (3)	Do not kink or stretch the D2B fiber optic cable. Install caps on fiber optic cable connector and equipment connector. Refer to: ↓
		Cover fiber optic cable	AR82.95-P-0005-01A
	Notes on fiber optic cable	Model 129, 163, 168, 170, 202, 203, 208, 209, 210, 215, 220, 230, 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /309 /322 /323 /332 /333	AH82.70-P-0001-02A
5	Disconnect connector (4)
6	Install in the reverse order
