Remove/install oil pump radial shaft sealing ring - AR27.40-P-0300A

TRANSMISSION 722.6 /9 /9 Torque converter developed

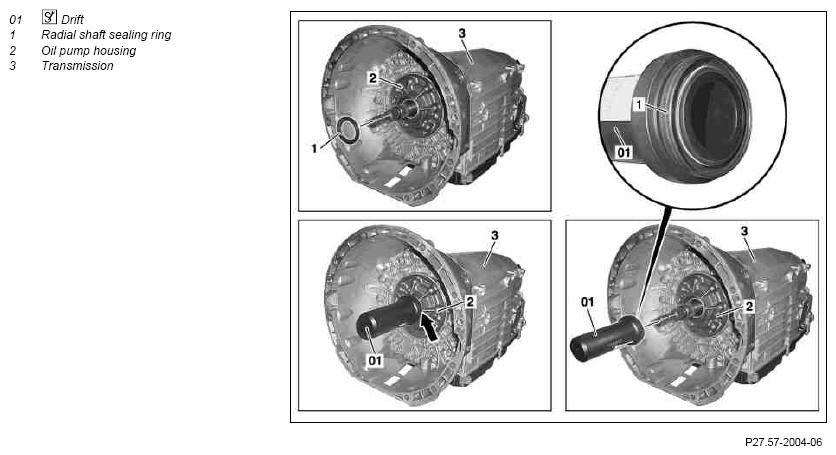

Fig 1: Identifying Oil Pump Radial Shaft Sealing Ring Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Lever radial shaft sealing ring (1) out of oil pump housing (2).	Do not damage seat of radial shaft sealing ring (1) to prevent oil loss and therefore damage to the transmission (3).
	Install
2	Install radial shaft sealing ring (1) flush using drift (01).	Install new radial shaft sealing ring (1). Coat radial shaft sealing ring (1) between lips with multi-purpose paste.
		Drift	Fig 2
		Multi-purpose paste	*BR00.45-Z-1009-06A

Fig 2: Identifying Drift (722 589 00 15 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1009-06A	Multi-purpose paste	A 000 989 80 51 10
