Outer multiple-disc carrier B1 modified - BT27.50-P-0008-01A
TRANSMISSION 722.6## ## as of 0005900
PRODUCTION BREAKPOINT DATA/MODIFICATIONS/NEW FEATURES
| Transmission/steering gear | Transmission ident. end no. as of | Type of and reason for modification |
|---|---|---|
| 722.6 | 0005900 | Outer multiple-disc carrier B1 modified, disc spring therefore does not contact the outer multiple-disc carrier |

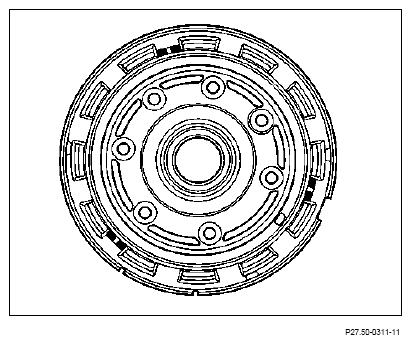

- Only place the disc spring lugs in the marked recesses of the outer multiple-disc carrier
Insert disc spring with the curvature towards the piston
