Attaching Mercedes-Benz quick-clamping devices - AR40.20-P-0230SX
MODEL 166, 172, 197, 204, 207, 212, 216, 218, 221.0 /1
Shown on model 221
Courtesy of MERCEDES-BENZ USA
Shown on model 221
Courtesy of MERCEDES-BENZ USA
  |
Installing, removing |
|
|
| 1 |

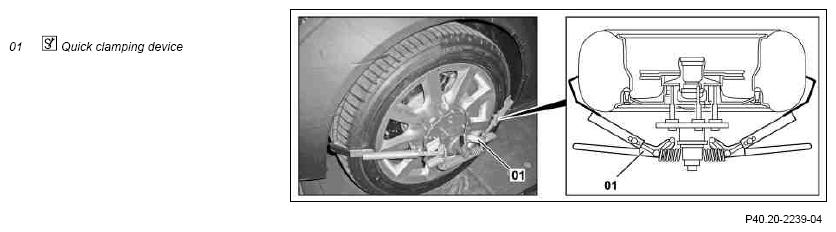

Attach quick-clamping devices (01) to the front and rear wheels and remove clamping handles |
Quick-clamping device

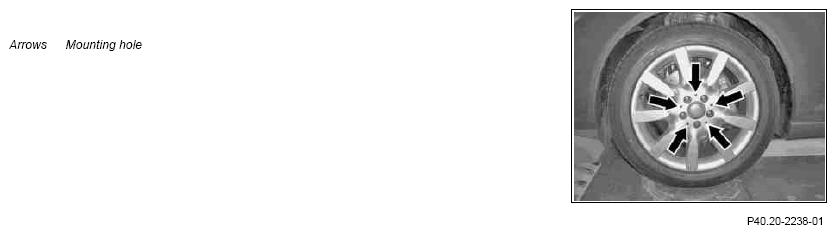

The mounting bell is centered on the front wheel hub or rear axle shaft flange by locating the tracer pins in the five mounting holes (arrows) in the rim.
Check quick-clamping devices (01), wheel mirrors or measurement pickups at regular intervals as per the manufacturer's specifications. |
Fig 3 |
| 2 |
Attach wheel mirrors or measurement sensors |
|
|
| 3 |
Remove in the reverse order |
|
|
