Remove/install wheel carrier - AR35.20-P-0115SX

MODEL 216

MODEL 221

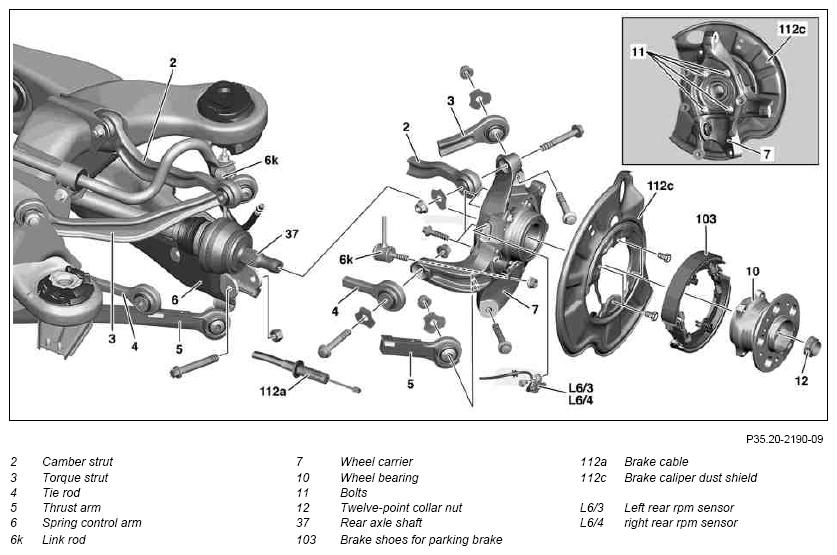

Fig 1: Identifying Wheel Carrier Components
G07541832Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

19.10.09 Value changed: Collar nut, rear axle shaft to rear axle shaft flange, M26 Model 221 without code Z07 except model 221.179 *BA35.30-P-1001-01I
  Value changed: Collar nut, rear axle shaft to rear axle shaft flange, Model 221 without code Z07 except model 221.179 *BA35.30-P-1001-01I
REMOVINGINSTALLING Remove/install
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
INSTALLATION IMPORTANT Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1 Remove wheel.
REFER TO MAINTENANCE Remove/install wheels   AP40.10-P-4050SX
2 Remove twelve-point collar nut (12) from rear axle shaft (37)   AR35.30-P-0115-01SX
    TORQUE SPECIFICATION *BA35.30-P-1001-01I
    Special tool only for collar nut M29
SPECIAL TOOL
*220589010900
3 Move electronic parking brake into assembly position using STAR DIAGNOSIS
4 Detach brake caliper at rear axle NOTES Attach brake caliper to vehicle without tension to relieve brake hose so that it is not damaged during repair. AR42.10-P-0080SX
5 Remove brake disc   AR42.10-P-0220SX
6 Remove brake shoes (103)   AR42.20-P-0530SX
7 Detach brake cover plate (112c) from wheel carrier (7) Vehicles without maximum protection, code Z07
IMPORTANT The brake cover plate (112c) cannot be removed, but it must be twisted in order to be able to remove the bolts of the struts.

8 Detach rpm sensor (L6/3 or L6/4) from wheel carrier (7) TORQUE SPECIFICATION *BA42.30-P-1001-02I
9 Pull brake cable (112a) out of wheel carrier (7)   AR42.20-P-0525SX
10 Detach link rod (6k) from wheel carrier (7) Model 221 with AIRmatic
    TORQUE SPECIFICATION *BA32.20-P-1001-04G
11 Raise wheel carrier (7) using transmission jack and transmission platform until rear axle shaft (37) is roughly horizontal INSTALLATION IMPORTANT Tighten the bolted connections of the torque strut, camber strut and thrust arm as well as of the tie rod.
12 Detach torque strut (3) from wheel carrier (7) INSTALLATION IMPORTANT Bolt on torque strut (3) loosely. AR35.20-P-0111SX
13 Detach camber strut (2) from wheel carrier (7) INSTALLATION IMPORTANT Bolt on camber strut (2) loosely. AR35.20-P-0110SX
14 Detach tie rod (4) from wheel carrier (7). INSTALLATION IMPORTANT Bolt on tie rod (4) loosely. AR35.20-P-0109SX
15 Detach thrust arm (5) from wheel carrier (7) INSTALLATION IMPORTANT Bolt on thrust arm (5) loosely. AR35.20-P-0113SX
16 Check that rear axle shaft (37) is firmly seated in rear axle shaft flange If the rear axle shaft (37) is difficult to remove: ↓
Press rear axle shaft out of the rear axle shaft flange
AR35.30-P-0115-03SX
    SPECIAL TOOL *210589034300
    SPECIAL TOOL *210589014000
17 Detach spring control arm (6) from wheel carrier (7) INSTALLATION IMPORTANT Raise wheel carrier (7) using transmission jack and transmission plate until the rear axle shaft (37) is roughly horizontal, then tighten all the bolted connections which have been screwed on loosely.
    TORQUE SPECIFICATION *BA35.20-P-1002-01A
18 Remove wheel carrier (7) with brake cover plate (112c) and wheel bearing (10) from rear axle shaft (37) NOTES Do not damage rubber boot and rotor for rpm sensor (L6/3, L6/4) on the rear axle shaft (37).
19 Pull rear axle shaft flange out of angular contact ball bearing Except model 216.379, 221.179
Except model 221 with maximum protection, code Z07
AR35.20-P-0130-06SX
    SPECIAL TOOL *202589044310
    SPECIAL TOOL *211589013300
20.1 Detach wheel bearing (10) from wheel carrier (7); to do this, remove bolts (11) Model 221 without maximum protection, code Z07
When replacing the wheel carrier (7)

    TORQUE SPECIFICATION BA35.20-P-1001-06A
20.2 Press rear axle shaft flange off wheel carrier (7) Model 221 with maximum protection, code Z07
When replacing the wheel carrier (7)
AR35.20-P-0130-08SXS
21 Install in the reverse order
22 Adjust parking brake   AR42.20-P-0540SX
23 Perform wheel alignment check Model 216
Model 221 without maximum protection, code Z07
Model 221 with maximum protection, code Z07
AR40.20-P-0200SX
REAR AXLE RPM SENSOR

Number Designation   Model 216 Model 221
BA42.30-P-1001-02I Self-locking bolt of rear axle rpm sensor to wheel carrier Nm 8 8
REAR AXLE STABILIZER BAR

Number Designation   Model 221
BA32.20-P-1001-04G Nut, link rod to wheel carrier Nm 40
SPRING CONTROL ARM

Number Designation     Model 216 Model 221 without code Z07/Z07+Z19 Model 221 with code Z07/Z07+Z19
BA35.20-P-1002-01A Self-locking nut, spring control arm to wheel carrier. Stage 1 Nm 80 80 80
    Stage 2 ∠° 90 90 90
HUB

Number Designation   Model 216 Model 221
BA35.20-P-1001-06A Wheel bearing to wheel carrier Nm 70 70
REAR AXLE SHAFT

Number Designation         Model 216 except model 216.379 Model 216.379
BA35.30-P-1001-01I Collar nut, rear axle shaft to rear axle shaft flange self-locking M26   Nm 350 -
    not self-locking M26 Stage 1 Nm 170 -
        Stage 2 ∠° 45 -
    not self-locking M29 Stage 1 Nm - 150
        Stage 2 ∠° - 45
REAR AXLE SHAFT

Number Designation         Model 221 without code Z07/Z07+Z19 except model 221.179 Model 221.179
BA35.30-P-1001-01I Collar nut, rear axle shaft to rear axle shaft flange self-locking M26   Nm 350 -
    not self-locking M26 Stage 1 Nm 170 -
        Stage 2 ∠° 45 -
    not self-locking M29 Stage 1 Nm - 150
        Stage 2 ∠° - 45
REAR AXLE SHAFT

Number Designation         Model 221 with code Z07/Z07+Z19
BA35.30-P-1001-01I Collar nut, rear axle shaft to rear axle shaft flange self-locking M26   Nm -
    not self-locking M26 Stage 1 Nm -
        Stage 2 ∠° -
    not self-locking M29 Stage 1 Nm 390
        Stage 2 ∠° -
Fig 2: Identifying Press (202 589 04 43 10)
G07514756Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Puller (211 589 01 33 00)
G07514757Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Extraction And Insertion Tool (210 589 03 43 00)
G07514758Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Bracket (210 589 01 40 00)
G07514759Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Wrench Socket (220 589 01 09 00)
G07507896Courtesy of MERCEDES-BENZ USA
