Remove, install rear rubber mount of rear axle center assembly suspension - AR35.10-P-0050-02SX

Fig 1: Identifying Extraction And Insertion Tool (221 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hollow Piston Cylinder (001 589 51 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

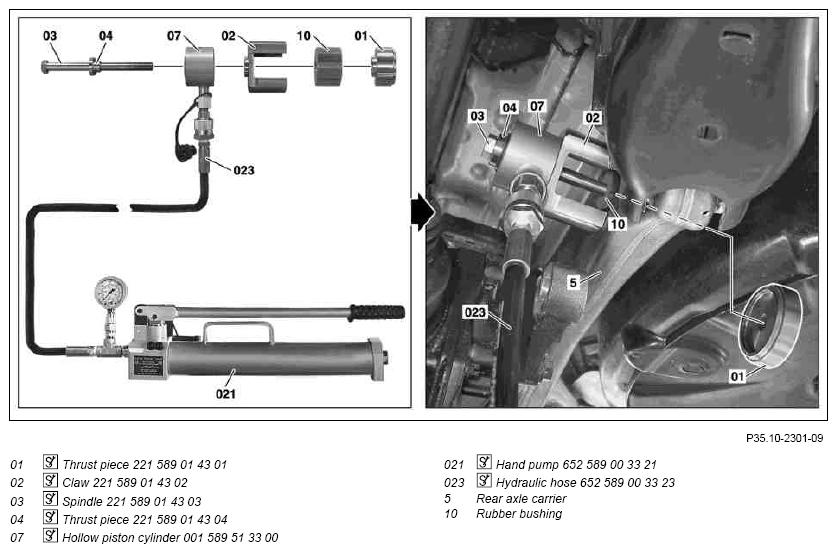

Fig 5: Removing Rear Rubber Mount Of Rear Axle Center Assembly Suspension

Courtesy of MERCEDES-BENZ USA

Removing

1. Mount  hollow piston cylinder (07) using hydraulic hose (023) to hand pump (021).
2. Mount extraction and insertion tool using hollow piston cylinder (07) to rear axle carrier (5) and rubber mount (10).
3. Press rubber mounts (10) forward out of rear axle carrier (5).

   When turning the spindle (03) into the thrust piece (01), make sure that the spare tire well is not damaged.

   If the hollow piston cylinder (07) has reached its max. stroke, release pressure at the hand pump (021), turn the spindle (03) further into the thrust piece (01) and repeat the pressing procedure.

   Install

4. Fit new rubber mount (10) onto rear axle carrier (5) from front.

   Observe installation position: The narrow bars (10s) of the rubber mount (10) must face up or down.

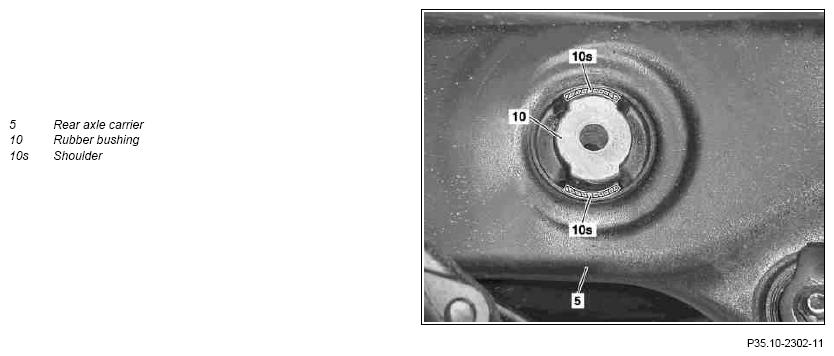

   Fig 6: Identifying Rear Axle Carrier, Rubber Bushing And Shoulder

   Courtesy of MERCEDES-BENZ USA

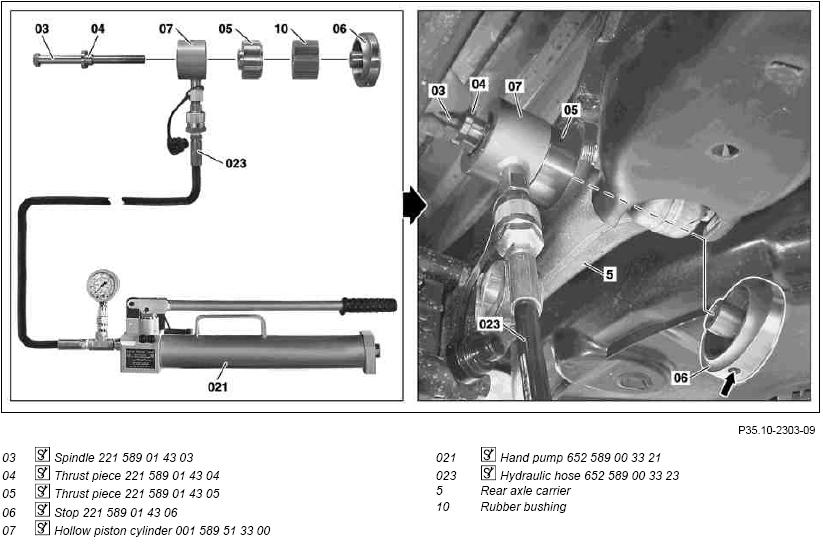

   Fig 7: Installing Rear Rubber Mount Of Rear Axle Center Assembly Suspension

   Courtesy of MERCEDES-BENZ USA
5. Insert stop (06) from rear into bore on rear axle carrier (5).

   The hole (arrow) in the stop (06) must face downward.

6. Apply extraction and insertion tool using hollow piston cylinder (07) to rubber mount (10).
7. Press rubber mount (10) into rear axle carrier (5)

   When turning the spindle (03) into the stop (06), make sure that the spare tire well is not damaged.

   If the hollow piston cylinder (07) has reached its max. stroke, release pressure at the hand pump (021), turn the spindle (03) further into the stop (06) and repeat the pressing procedure.

   The shape of the stop (06) determines the end position of the rubber mount (10) in the rear axle carrier (5).
