Front rubber mount of rear axle mount - Removal and installation - AR35.10-P-0041SX

MODEL 221 except CODE (Z07) Top protection

MODEL 216

Fig 1: Identifying Components Of Front Rubber Mount Of Rear Axle Mount

Courtesy of MERCEDES-BENZ USA

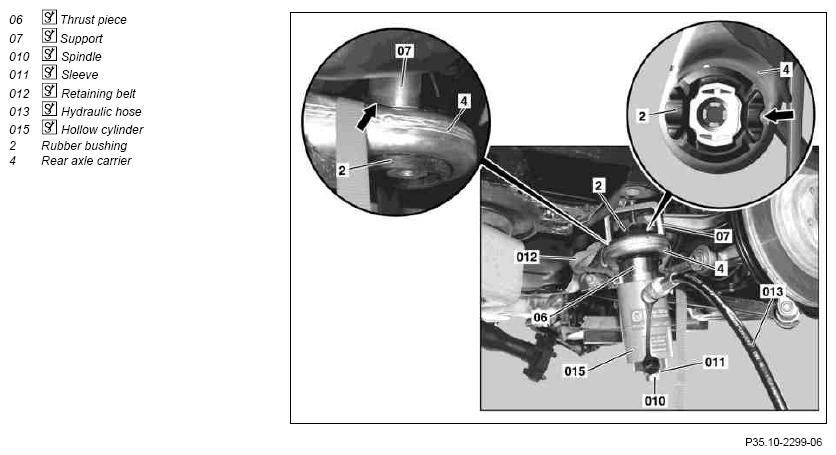

Fig 2: Removing/Installing Front Rubber Mount Of Rear Axle Mount (1 Of 2)

Courtesy of MERCEDES-BENZ USA

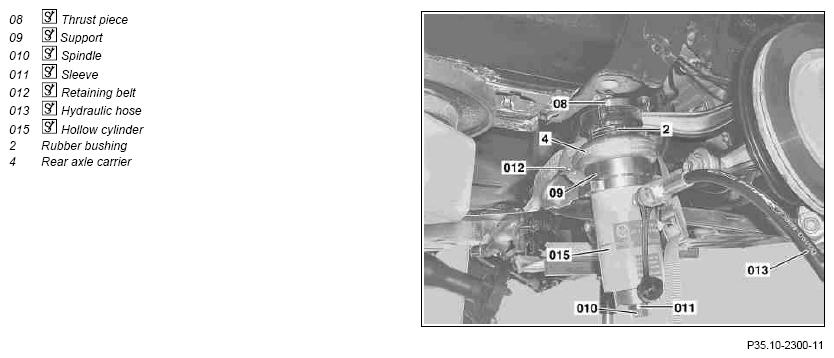

Fig 3: Removing/Installing Front Rubber Mount Of Rear Axle Mount (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

20.1.06	Liquid lubricant (naphtolen H) replaced by rubber assembly fluid	Step 13
5.5.06	Bolt, stop to longitudinal member	Model 221	*BA35.10-P-1008-01M

	Removing
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
	Always repair front rubber mount (2) in pairs
	The following tools are required from the extraction and insertion tools: thrust piece (06)221 589 00 43 06, thrust piece (08)221 589 00 43 08, support (07)221 589 00 43 07, Support (09)221 589 00 43 09, spindle (010) 221 589 00 43 10 and sleeve (011)221 589 00 43 11		221589004300
1	Secure vehicle on lifting platform		AR00.60-P-0100SX
2	Remove rear wheels.
	Remove/install wheels		AP40.10-P-4050SX
3	Remove exhaust system as of flange connection	Engine 156, 272, 273, 275	AR49.10-P-7100SX
		Engine 642, 629	AR49.10-P-7100SXI
4	Detach propeller shaft from rear axle center assembly (50)		AR41.10-P-0050-03SX
5	Prop up rear axle carrier (4) on rear axle center assembly (50) using transmission jack and transmission platform	Transmission platform Transmission jack
6	Remove bolts (3s)
7	Unscrew bolts (2s) and remove stops (3)
8	Lower the rear axle carrier (4)
9	Mark installation position of rubber mount (2) at the recess (arrow, second picture, left enlarged detail)	The cutout is visible from above when the rear axle carrier (4) is lowered and faces towards the rear of the vehicle.
10	Attach thrust piece (06), support (07), spindle (010) and sleeve (011) with hollow cylinder (015) and retaining belt (012) to rubber mount (2) of rear axle carrier (4)	Mount support (07) with inclined side (arrow, second picture in right magnifying glass) in direction of travel.
			652589003322
			001589016300
11	Connect hand pump using hydraulic hose (013) on hollow cylinder (015)		*652589003321
			652589003323
			652589003322
12	Press rubber mount (2) out of rear axle carrier (4)	While pressing out relieve the pressure 1-2 times at the hand pump so that the rubber lip of the rubber bushing (2) is not jammed between the rear axle carrier (4) and thrust piece (06). The rear axle carrier (4) will otherwise be damaged.
	Install
13	Coat new rubber mounts (2) with rubber assembly fluid		*BR00.45-Z-1010-06A
14	Attach thrust piece (08), support (09), spindle (010) and sleeve (011) with hollow cylinder (015) and retaining belt (012) to rubber mount (2) of rear axle carrier (4)		652589003322
			001589016300
15	Press rubber mount (2) into rear axle carrier (4)
16	Raise rear axle carrier (4).
17	Attach stops (3) and screw in bolts (2s)		*BA35.10-P-1001-01M
18	Screw in bolts (3s)		*BA35.10-P-1008-01M
19	Mount propeller shaft onto rear axle center assembly (50)		AR41.10-P-0050-04SX
20	Install exhaust system as of flange connection	Engine 156, 272, 273, 275	AR49.10-P-7100SX
		Engine 642, 629	AR49.10-P-7100SXI
21	Fit rear wheels
	Remove/install wheels		AP40.10-P-4050SX
22	Remove lifting platform safety device		AR00.60-P-0100SX

REAR AXLE CARRIER

Number	Designation			Model 221 except 221.176/179 with rear axle differential 240V	Model 221.176/179 with rear axle differential 240V
BA35.10-P-1001-01M	Self-locking bolt, front rear axle carrier rubber mount to frame floor	Stage 1	Nm	80	80
		Stage 2	∠°	90	90
BA35.10-P-1008-01M	Bolt, stop to longitudinal member		Nm	35	35

REAR AXLE CARRIER

Number	Designation			Model 216
BA35.10-P-1001-01M	Self-locking bolt, front rear axle carrier rubber mount to frame floor	Stage 1	Nm	80
		Stage 2	∠°	90
BA35.10-P-1008-01M	Bolt, stop to longitudinal member		Nm	35

Fig 4: Identifying Extraction And Insertion Tool (221 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Retaining Belt (001 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
