AIRmatic, block diagram - GF32.22-P-0003-06LEA

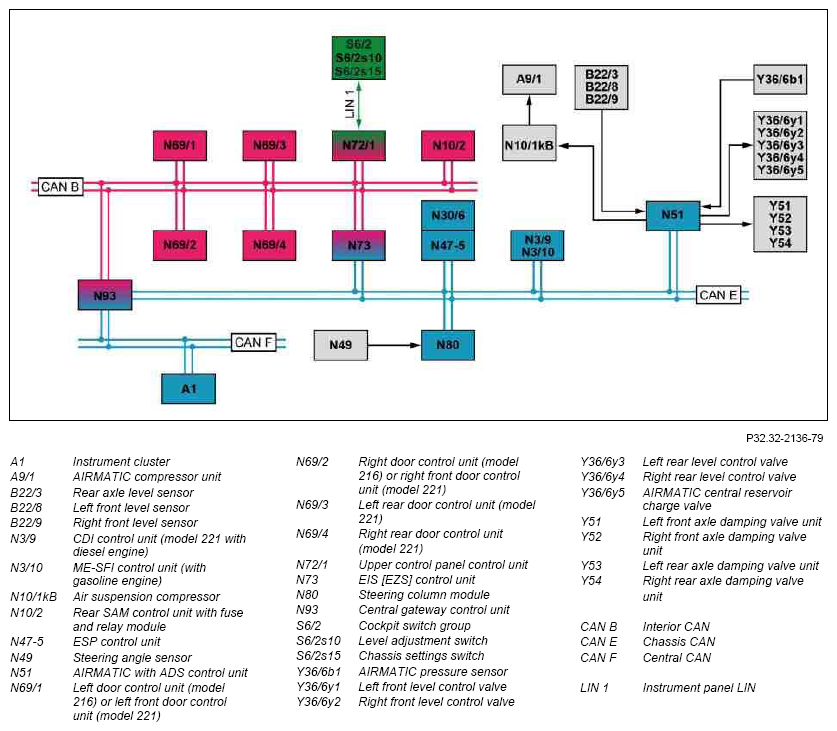

Fig 1: AIRmatic Block Diagram

G07536549

Courtesy of MERCEDES-BENZ USA
