ME-SFI control unit, location - GF07.61-P-5000-01MS

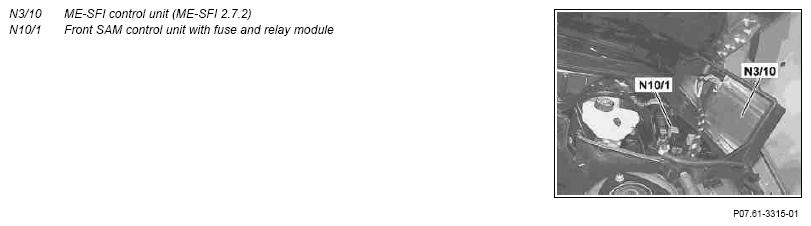

Fig 1: Identifying ME-SFI Control Unit And Front SAM Control Unit With Fuse And Relay Module
G07537695Courtesy of MERCEDES-BENZ USA

The ME-SFI control unit is located in the cover at the front SAM control unit with fuse and relay module.
