Remove and install tensioning rail and slide rail in timing case cover - AR05.10-P-8500M

ENGINE 275

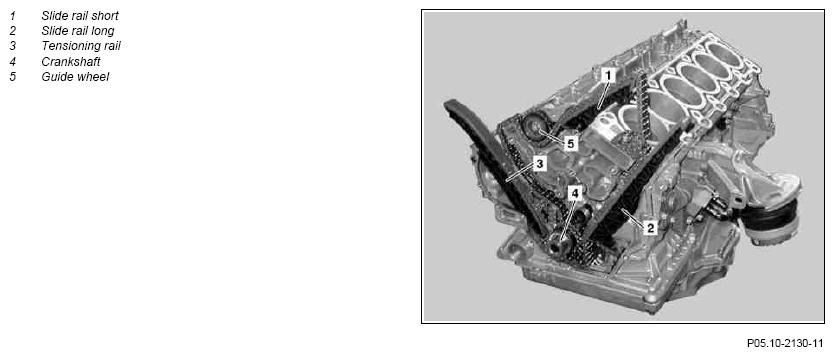

Fig 1: Identifying Slide Rail Short, Slide Rail Long, Tensioning Rail, Crankshaft And Guide Wheel
G07541659Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove timing case cover   AR01.40-P-8000M
2 Detach slide rail short (1) and slide rail long (2) to the front from guide pins IMPORTANTInstallation:  Lubricate guide pins.
3 Detach tensioning rail (3) to front from guide pin. IMPORTANTInstallation:  Lubricate guide pin.
4 Install in the reverse order
