Connect compression recorder - AR01.10-P-0010-01SX

Fig 1: Identifying Compression Tester (001 589 76 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Electrical Connection Kit (220 589 00 99 00)

Courtesy of MERCEDES-BENZ USA

1. Remove cover (1) of left fuse and relay box in the engine compartment.

   For vehicles with engine 275, the ME-SFI [ME] control unit is located in the cover (1).

   Installation:  Check seal in cover (1); replace seal if necessary.

2. Unlock plug (2) on driver-side SAM control unit with fuse and relay module (N10/1) and detach.

   Shown on model 221.171 with code (487) Active Body Control (ABC)

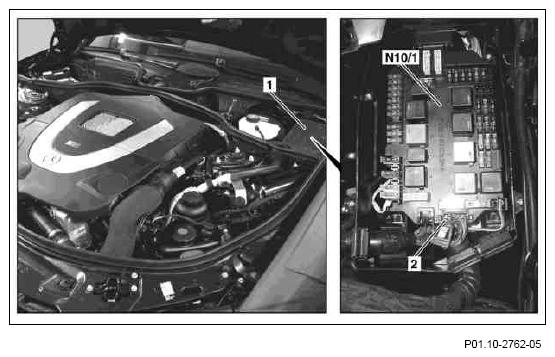

   Fig 3: Identifying Plug On Driver-Side SAM Control Unit With Fuse And Relay Module

   Courtesy of MERCEDES-BENZ USA
3. Connect up compression recorder (01) on starter battery circuit 30 and with adapter line (11) from electrical connection kit on plug position "7" of connector (2).

   The plug positions on the connector (2) are numbered.

Shown on model 221.171 with code (487) Active Body Control (ABC)

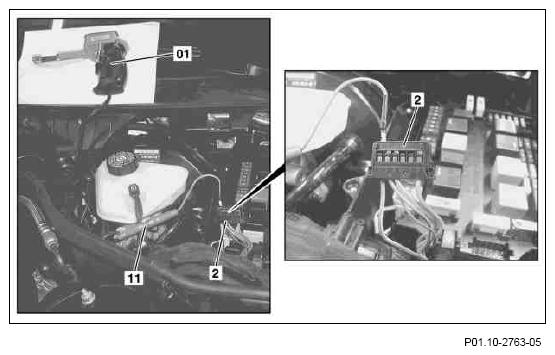

Fig 4: Identifying Plug Positions On Connector

Courtesy of MERCEDES-BENZ USA
