Overview of system components, panoramic sliding sunroof - GF77.20-P-9991CE

MODEL 204.0 /2 with CODE (413) Panoramic glass roof with top sliding roof as of model year 2009 /YoM 08

MODEL 204.3 with CODE (413) Panoramic glass roof with top sliding roof

MODEL 204.9 with CODE (413) Panoramic glass roof with top sliding roof

Shown on model 204.0

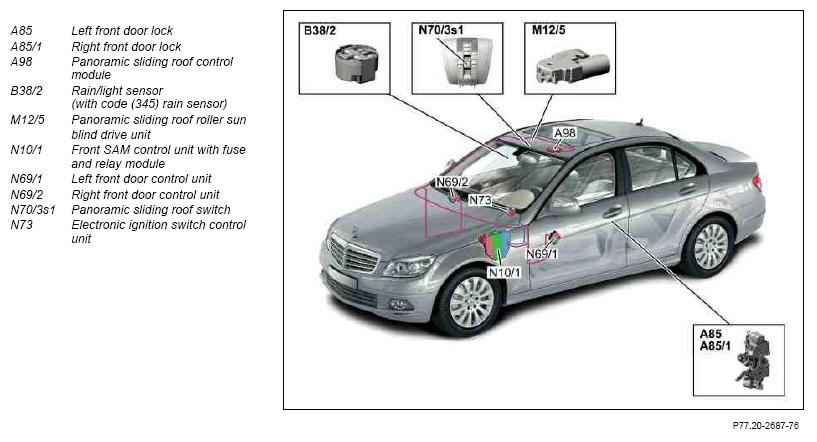

Fig 1: Identifying Panoramic Sliding Sunroof System Components

Courtesy of MERCEDES-BENZ USA

Component description for panoramic sliding roof control module	A98	GF77.20-P-4106CE
Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070CE
Component description for left front door control unit	N69/1	GF72.29-P-6001CE
Component description for right front door control unit	N69/2	GF72.29-P-6009CE
Component description for electronic overhead control panel	N70/3	GF82.20-P-5217CE
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001CE
Table of contents, function description for electric panoramic sliding sunroof		GF77.20-P-0997CE
