Check setting of high beam - AP82.10-P-8260-02SX
| AP82.10-P-8260-02SX | Check setting of high beam | ||
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard through highly flammable material in the area of damaged xenon lamps Risk of injury through UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst Risk of poisoning through inhalation of mercury vapor and swallowing of or skin contact with toxic salts and mercury compounds |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off complete lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the workplace is sufficiently ventilated. | AS82.10-Z-0001-01A |

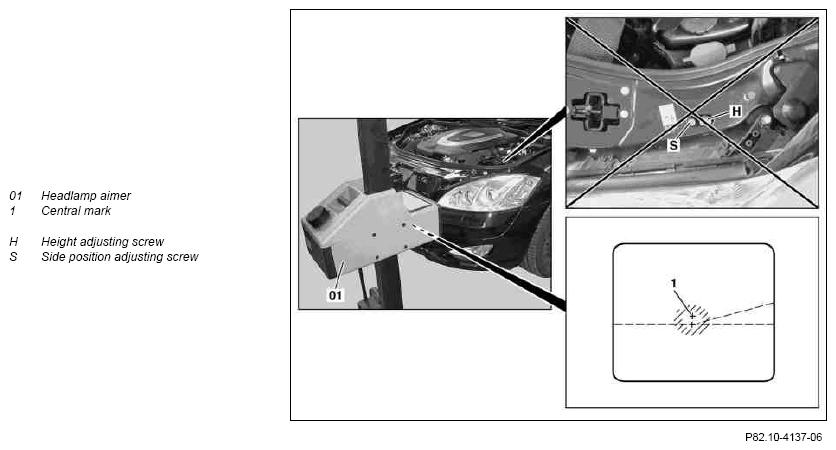

The center of the light beam must lie on the central mark (1) in the headlamp aimer (01).
- In event of deviation, check that bulb is seated correctly in headlamp.
Do not make corrections using adjusting screws (H, S) of headlamp since this will change the previously adjusted low beam.
