Overview of system components, transfer case (VG) - GF28.10-P-9998VGC

MODEL 166.004 with TRANSMISSION 722.908

MODEL 166.023 /024 with TRANSMISSION 722.903

MODEL 166.055 with TRANSMISSION 722.906

MODEL 166.057 /058 with TRANSMISSION 722.906

MODEL 166.073 with TRANSMISSION 722.909

MODEL 166.074 with TRANSMISSION 722.905

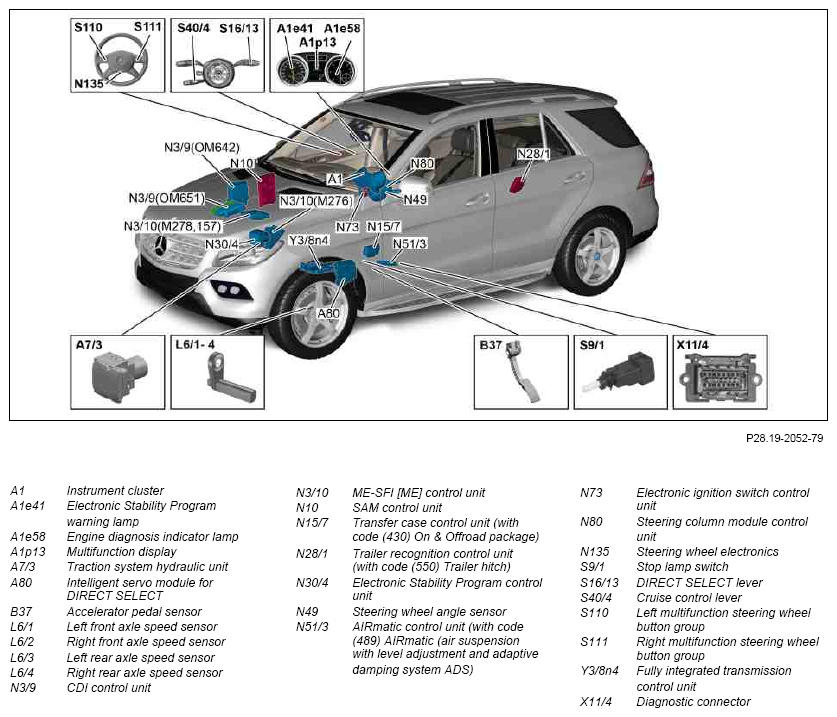

Phantom view of vehicle, shown on model 166.0

Fig 1: Overview Of Transfer Case System Components (Phantom View, Shown On Model 166.0)

Courtesy of MERCEDES-BENZ USA

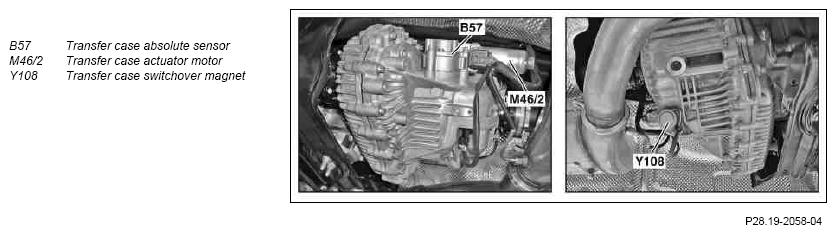

View of transfer case from left and right

Fig 2: Identifying Transfer Case Absolute Sensor, Actuator Motor And Switchover Magnet

Courtesy of MERCEDES-BENZ USA

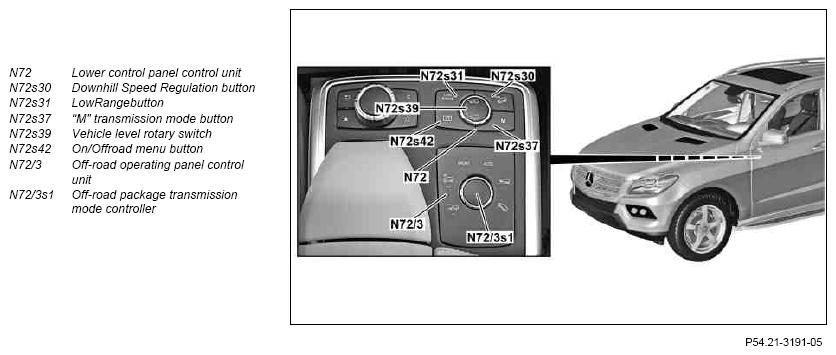

View of center console from above (with code (430) On&Offroad package), shown on model 166.0

Fig 3: View Of Center Console (With Code 430 On & Offroad Package) - Shown On Model 166.0

Courtesy of MERCEDES-BENZ USA

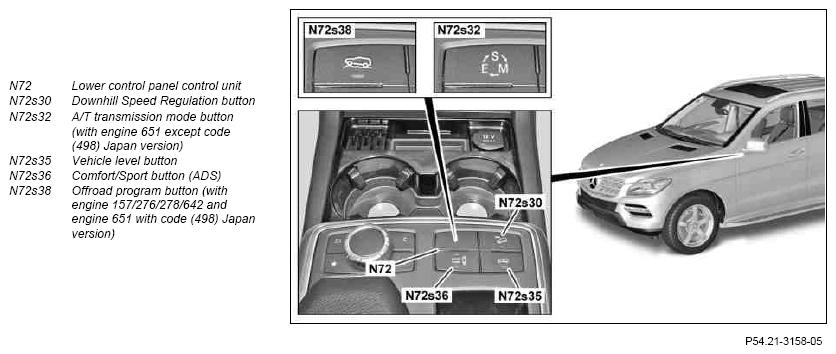

View of center console from above, (with code (489) AIRmatic (air suspension with level adjustment and adaptive damping system)) shown on model 166.0,

Fig 4: View Of Center Console (With Code 489) - Shown On Model 166.0

Courtesy of MERCEDES-BENZ USA

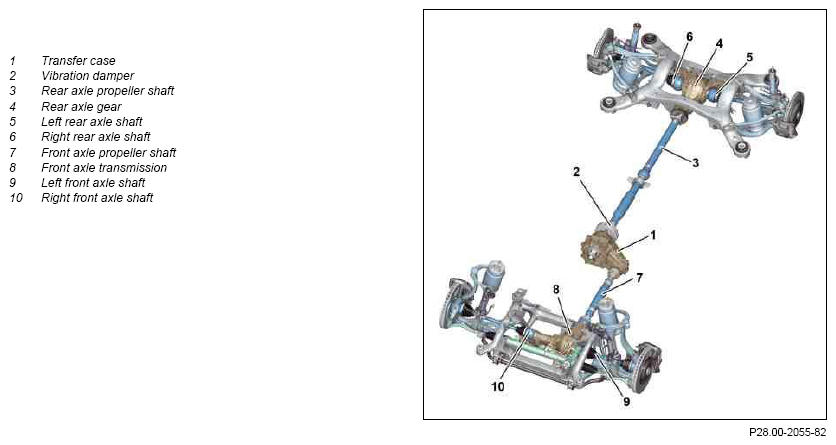

Illustration shows mechanical components (except code (430) On&Offroad package)

Fig 5: Identifying Transfer Case Mechanical Components (Except Code 430 On & Offroad Package)

Courtesy of MERCEDES-BENZ USA

Instrument cluster, component description	A1		GF54.30-P-6000GR
Intelligent servo module for DIRECT SELECT, component description	A80		GF27.19-P-4020AHA
CDI control unit, component description	N3/9	With engine 642.8	GF07.16-P-6000OGR
		With engine 651.9	GF07.16-P-6000OLG
ME-SFI [ME] control unit, component description	N3/10	With engine 276.9	GF07.61-P-6000MMG
		With engine 278.9, 157.9.	GF07.61-P-6000MMR
SAM control unit, component description	N10		GF54.21-P-4157GR
Component description of transfer case control unit	N15/7	With code (430) On&Offroad package and code (489) Airmatic (air suspension with level adjustment and adaptive damping system (ADS))	GF28.19-P-3200VGC
Trailer recognition control unit, component description	N28/1	With code (550) Trailer hitch	GF31.19-P-4050GR
Electronic Stability Program control unit, component description	N30/4		GF42.45-P-5119GR
AIRmatic control unit, component description	N51/3	For code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS)	GF32.22-P-5109GR
Lower control panel control unit, component description	N72		GF54.21-P-6060GR
Offroad operating panel control unit, component description	N72/3	With code (430) On&Offroad package and code (489) Airmatic (air suspension with level adjustment and adaptive damping system (ADS))	GF54.21-P-3520VGC
Electronic ignition lock control unit, component description	N73		GF80.57-P-6001GR
Steering column tube module control unit, component description	N80		GF54.21-P-6051GR
Fully integrated transmission control unit, component description	Y3/8n4		GF27.60-P-5165AHA
Table of contents for function description of transfer case (VG)			GF28.10-P-0999VGC
