| A0 |
Explanation of color codes |
23L |
| A2/44 |
Left front TPM [RDK] wheel antenna |
9L |
| A2/45 |
Right front TPM [RDK] wheel antenna |
13L |
| A2/97 |
Central TPM [RDK] antenna |
18L |
| A69/1 |
Left front TPM [RDK] wheel sensor |
11L |
| A69/2 |
Right front TPM [RDK] wheel sensor |
15L |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
16L |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
19L |
| F1/7 |
Left instrument panel fuse box |
2L |
| F1/7f96 |
Fuse 96 |
1K |

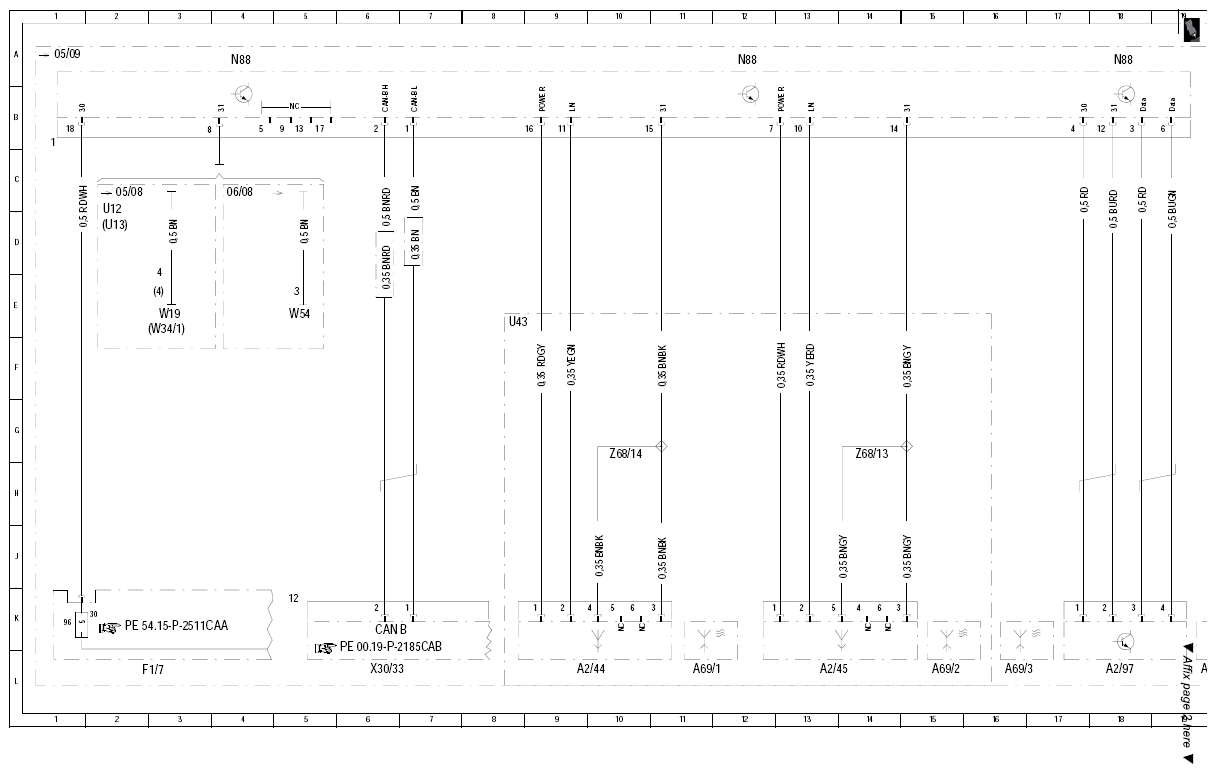

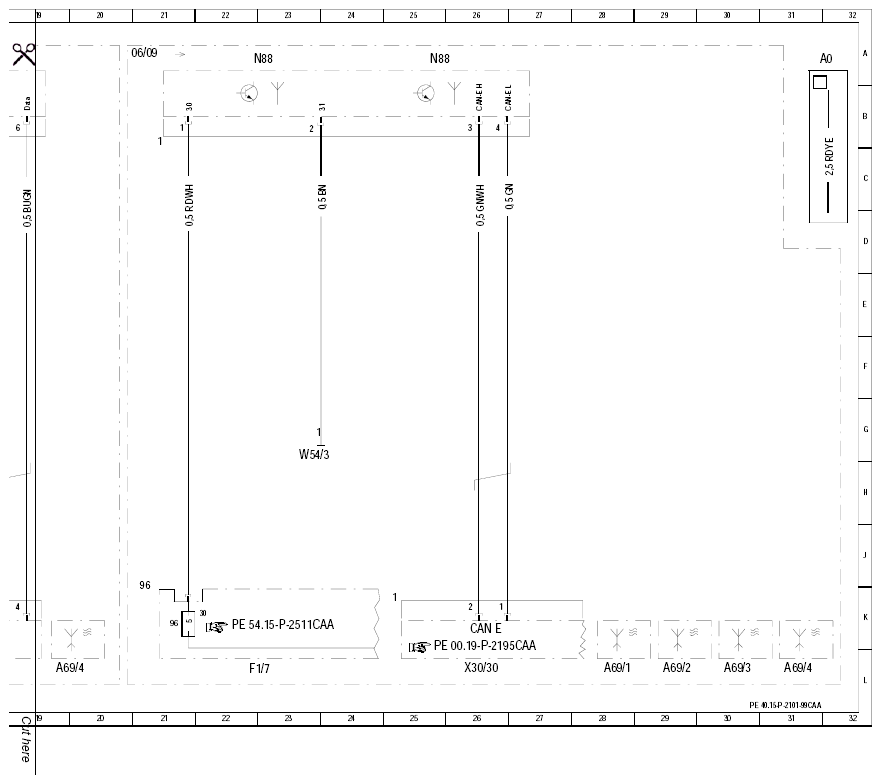

| N88 |
TPM control module |
4A |
| N88 |
TPM control module |
12A |
| N88 |
TPM control module |
18A |
| U12 |
Valid for left-hand steering |
2C |
| U13 |
Valid for right-hand steering |
2D |
| U43 |
Valid for ECE |
8E |
| W19 |
Ground (right front seat crossmember) |
3E |
| W34/1 |
Ground (electronics - left footwell) |
3E |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
6L |
| Z68/13 |
TPM [RDK] LIN bus ground connector sleeve |
14H |
| Z68/14 |
TPM [RDK] LIN bus ground connector sleeve |
10H |
