| 1 |
Circuit 15, status |
12G |
| 2 |
Wheel sensor, signal |
8G |
| 3 |
Outside temperature, signal |
9B |
| 3 |
Outside temperature, signal |
3C |
| 3 |
Outside temperature, signal |
9F |
| 4 |
Vehicle speed, signal |
12D |
| 4 |
Vehicle speed, signal |
10F |
| 5 |
Tire pressure monitor, message |
15F |
| 5 |
Tire pressure monitor, message |
10D |
| 6 |
Multifunction steering wheel button group, signal |
12B |
| 6 |
Multifunction steering wheel button group, signal |
18B |
| 6 |
Multifunction steering wheel button group, signal |
15F |
| 7 |
Instrument cluster, message |
10F |
| 7 |
Instrument cluster, message |
12D |

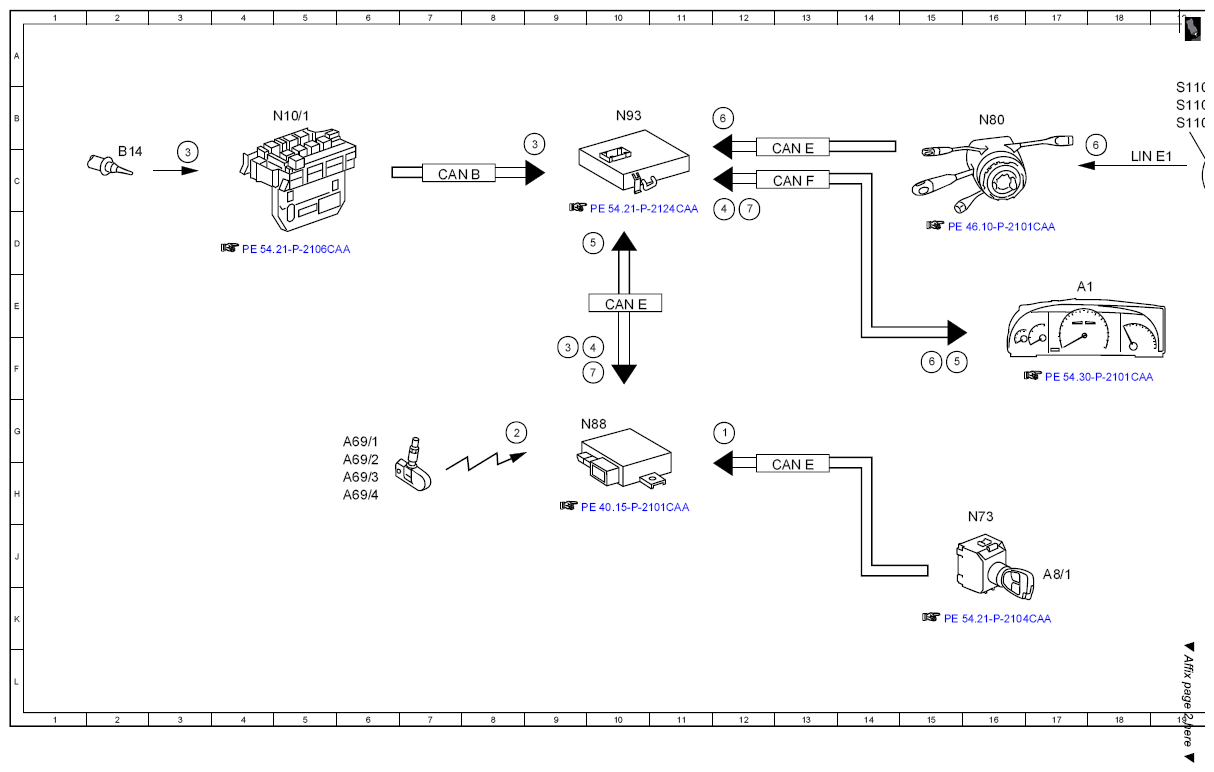

| A1 |
Instrument cluster |
17E |
| A69/1 |
Left front TPM [RDK] wheel sensor |
6G |
| A69/2 |
Right front TPM [RDK] wheel sensor |
6H |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
6H |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
6H |
| A8/1 |
Transmitter key |
17J |
| B14 |
Outside temperature display temperature sensor |
2C |
| CAN |
B Interior CAN |
8C |
| CAN |
E Chassis CAN |
10E |
| CAN |
E Chassis CAN |
13H |
| CAN |
E Chassis CAN |
13B |
| CAN |
F Central CAN |
13C |
| LIN |
E1 Steering LIN |
18C |
| N10/1 |
Front SAM control unit with fuse and relay module |
5B |
| N73 |
EIS [EZS] control unit |
16H |
| N80 |
Steering column module |
16B |
| N88 |
TPM [RDK] control unit |
10G |
| N93 |
Central gateway control unit |
10B |

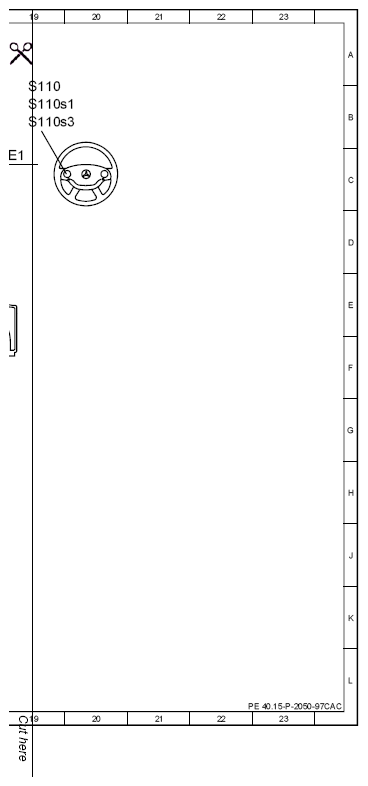

| S110 |
Left multifunction steering wheel button group |
19B |
| S110s1 |
Scroll forward/back button |
19B |
| S110s3 |
System selection button |
19B |
