Attaching Mercedes-Benz quick-clamping devices - AR40.20-P-0230SX

MODEL 172, 197, 204, 207, 212, 216, 218, 221.0 /1

Shown on model 221

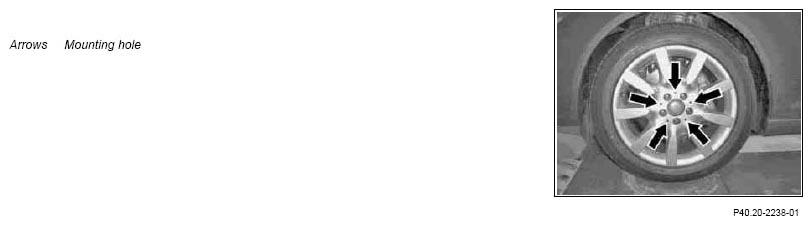

Fig 1: Identifying Wheel Mounting Holes

Courtesy of MERCEDES-BENZ USA

Shown on model 221

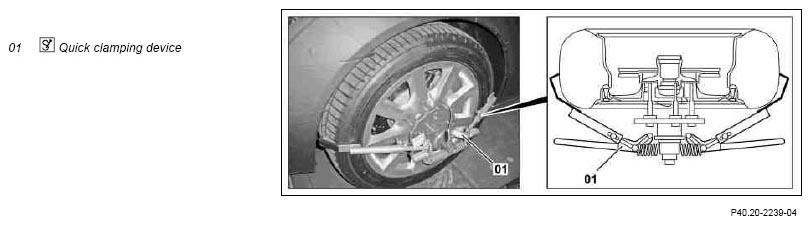

Fig 2: Identifying Quick-Clamping Devices

Courtesy of MERCEDES-BENZ USA

	Installing, removing
1	Attach quick-clamping devices (01) to the front and rear wheels and remove clamping handles	Quick-clamping device The mounting bell is centered on the front wheel hub or rear axle shaft flange by locating the tracer pins in the five mounting holes (arrows) in the rim. Check quick-clamping devices (01), wheel mirrors or measurement pickups at regular intervals as per the manufacturer's specifications.	Fig 3
2	Attach wheel mirrors or measurement sensors
3	Remove in the reverse order

Fig 3: Identifying Quick-Clamping Device (124 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
