Tire pressure monitor (TPM [RDK]) block diagram - GF40.15-P-0001-07LE

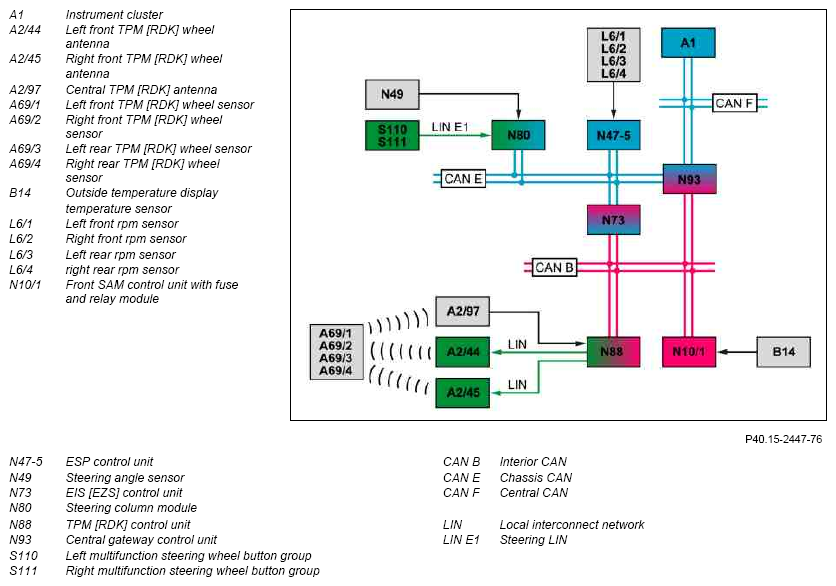

Fig 1: Identifying Tire Pressure Monitor (RDK) Block Diagram
G07643802Courtesy of MERCEDES-BENZ USA
