Tire pressure loss warning (RDW) Mercedes-Benz Driver Information Service - GF40.15-P-0002-03SX

Shown on model 221 with OM 642 up to 31.8.06

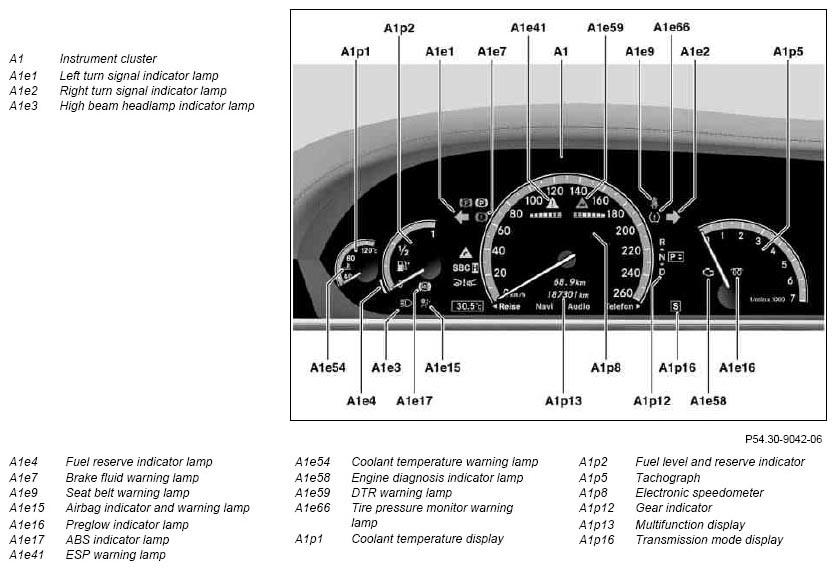

Fig 1: Identifying Instrument Cluster And Signal Indicator Lamps

Courtesy of MERCEDES-BENZ USA

The messages from the tire pressure loss warning (RDW) system are shown in the multifunction display in the instrument cluster.

A distinction is made between warning messages and information messages.

Messages in the multifunction display have the following properties:

acknowledgeable
not acknowledgeable

Information message shown on model 221 up to 31.8.06

The TPM system is only available as of "terminal 15 ON".

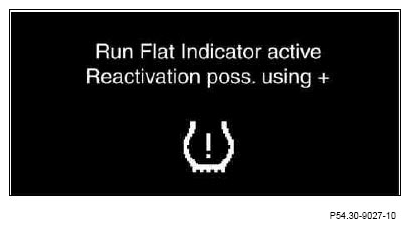

Fig 2: Identifying Display Information Message For Availability Run Flat Indicator

Courtesy of MERCEDES-BENZ USA

Information message shown on model 221 up to 31.8.06

This display appears if the tire pressure loss warning system is to be reactivated.

Fig 3: Identifying Display Information Message For Activation Of Run Flat Indicator

Courtesy of MERCEDES-BENZ USA

Information message shown on model 221 up to 31.8.06

Once the tire pressures have been checked the confirmation for the tire pressure loss warning system is made with this display

If this confirmation does not ensue the tire pressure loss warning system is not active.

Fig 4: Identifying Display Information Message For Confirmation Of Tire Pressure

Courtesy of MERCEDES-BENZ USA

Information message shown on model 221 up to 31.8.06

This display appears as confirmation that the tire pressure loss warning system is active.

Fig 5: Identifying Display Information Message (Run Flat Indicator Reactivated)

Courtesy of MERCEDES-BENZ USA

Warning message (while driving) shown on model 221 up to 31.8.06

The tire pressure loss warning system has determined that the rolling circumferences of the wheels have changed relative to each other. Checking the wheels is necessary.

The message can be acknowledged.

Fig 6: Identifying Display Warning Message (While Driving) - Check Tire

Courtesy of MERCEDES-BENZ USA

Warning message shown on model 221 up to 31.8.06

The tire pressure loss warning system has not yet been restarted since the last warning message.

Fig 7: Identifying Display Warning Message (Check Tires, Then Reactivate)

Courtesy of MERCEDES-BENZ USA

Warning message shown on model 221 up to 31.8.06

The system can only be activated in the workshop via STAR DIAGNOSIS.

With this display it is not possible for the driver to acknowledge the message.

Fig 8: Identifying Display Warning Message (Tire Pressure Monitor Inactive)

Courtesy of MERCEDES-BENZ USA
