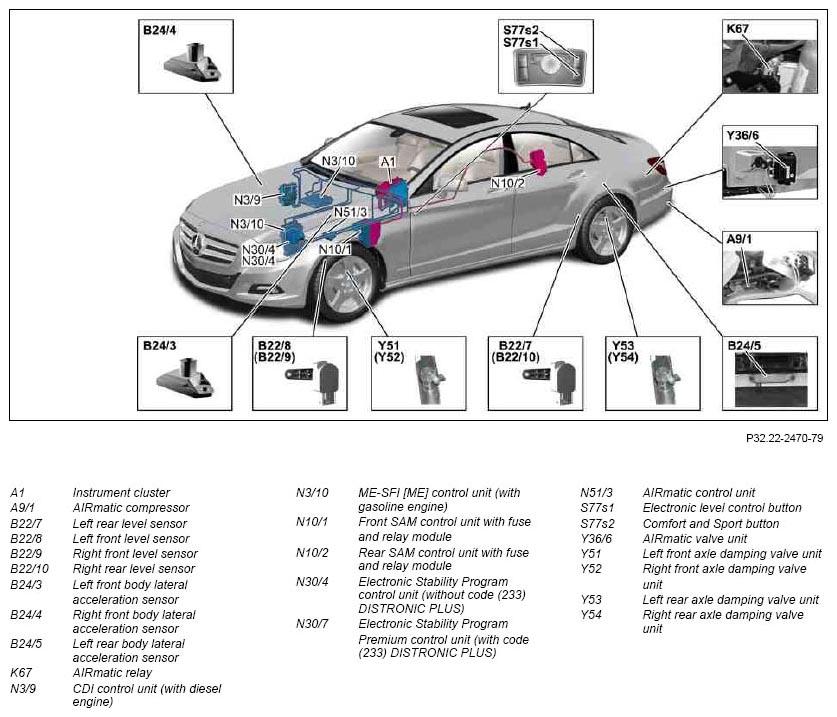

Overview of AIRmatic system components - GF32.22-P-9998FQ
MODEL 218 with CODE (489) AIRmatic (air suspension with continuous damper adjustment)
Illustrated on model 218.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ |
| Component description for CDI control unit | N3/9 With engine 642.8 |
GF07.16-P-6000OG |
| Component description for ME-SFI [ME] control unit | N3/10 With engine 276.9 |
GF07.61-P-6000MM |
| N3/10 With engine 278.9 |
GF07.61-P-6000MMA | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ |
| Component description for Electronic Stability Program control unit | N30/4, N30/7 | GF42.45-P-5119FQ |
| AIRmatic control unit, component description | N51/3 | GF32.22-P-5109FQ |
| AIRmatic, function description, contents | see GF32.22-P-0998FQ |
