230 589 00 43 16 Shaft - WS35.00-P-0184-16B

FG35/Set B

MODEL 211, 230

Use:

Spindle (218 mm) from set W 230 589 00 43 00

VEHICLE

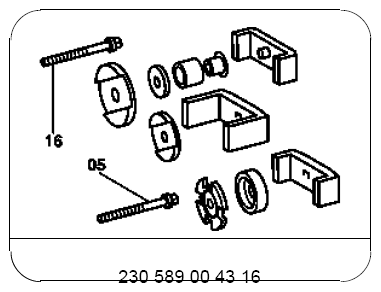

Fig 1: Identifying Shaft (230 589 00 43 16)
G07643261Courtesy of MERCEDES-BENZ USA
